X-SEAL® ANCHOR

Product Image

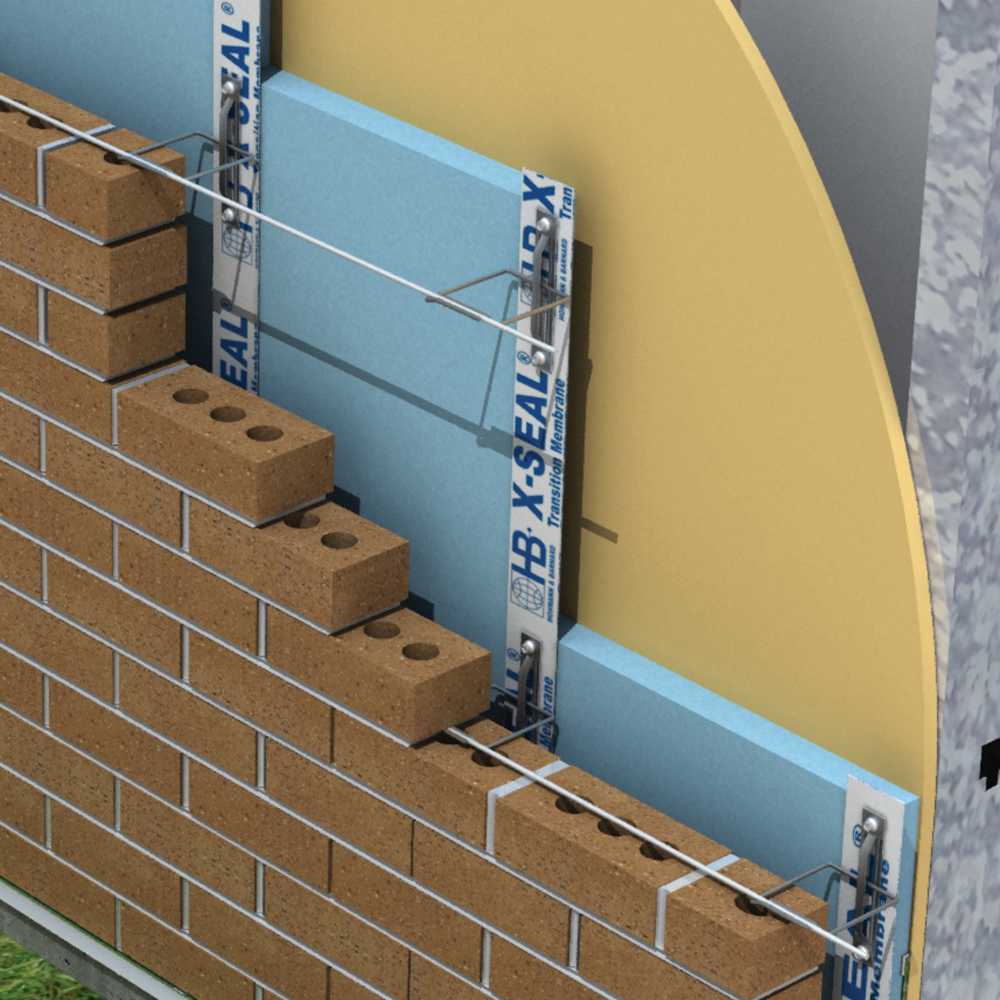

X-SEAL Veneer Anchor shown with VBT Vee Byna-Tie
Product Image
Product Image
Product Image
Product Image

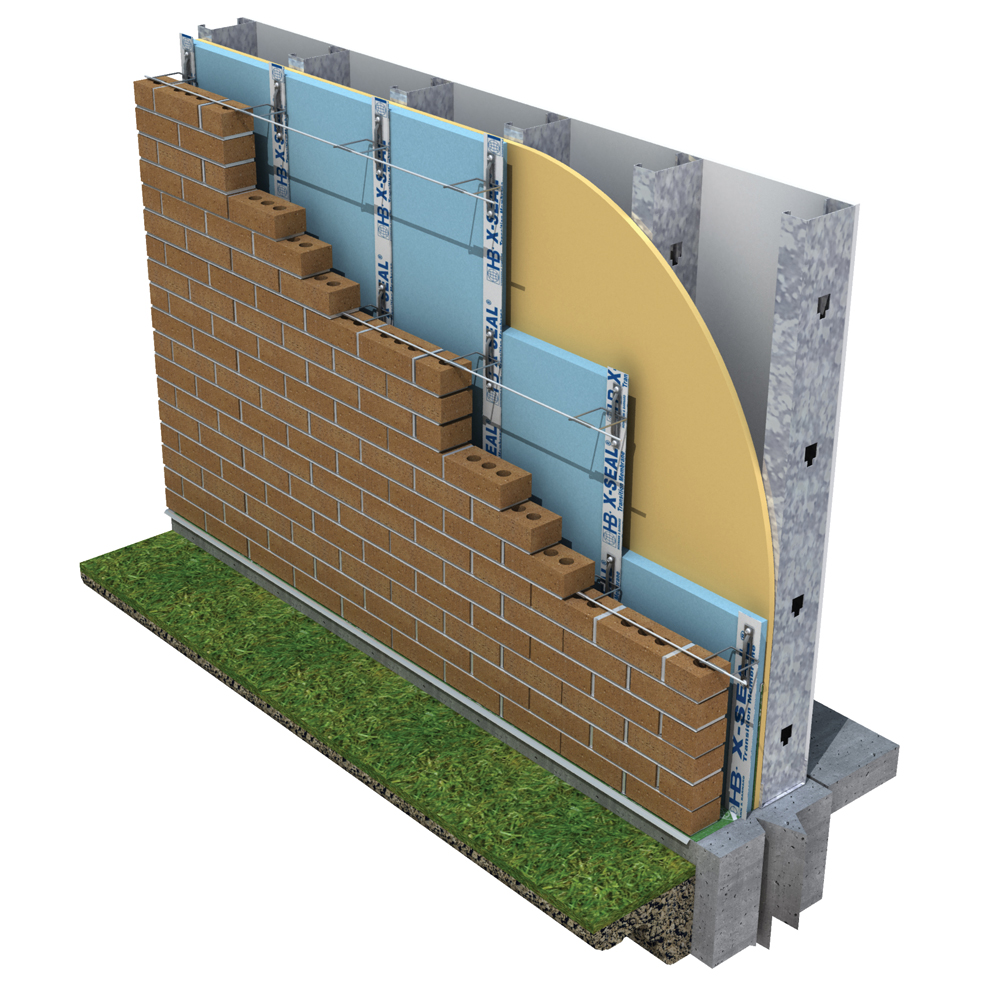

X-SEAL Veneer Anchor shown with VBT Vee Byna-Tie
X-SEAL Veneer Anchor shown with VBT Vee Byna-Tie
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

The X-SEAL® Anchor meets or exceeds requirements of the Commonwealth of Massachusetts State Building Code for air leakage and water penetration

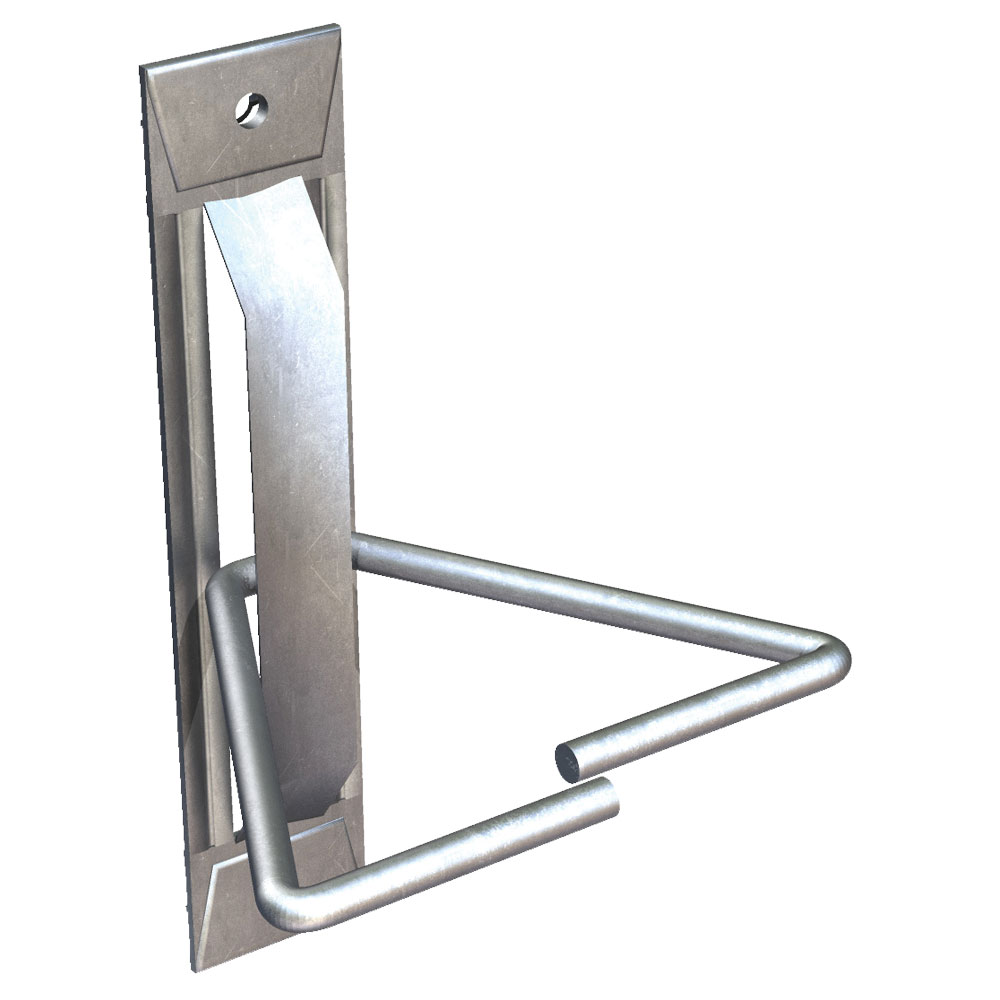

  • The X-SEAL® Veneer Anchor is packed with more features than any other anchor on the market. Owners, architects and masons can be confident in the performance of an "X-SEALED" metal stud / veneer wall. The X-SEAL® Anchor is the next generation veneer anchor from H&B. The original DW-10-X® Anchor was developed to address the problem of possible long-term deterioration of the insulation or wallboard. The pronged legs bridge the sheathing and abut the steel stud, affording independent, positive anchorage. Compression of the sheathing by positive loads is also prevented

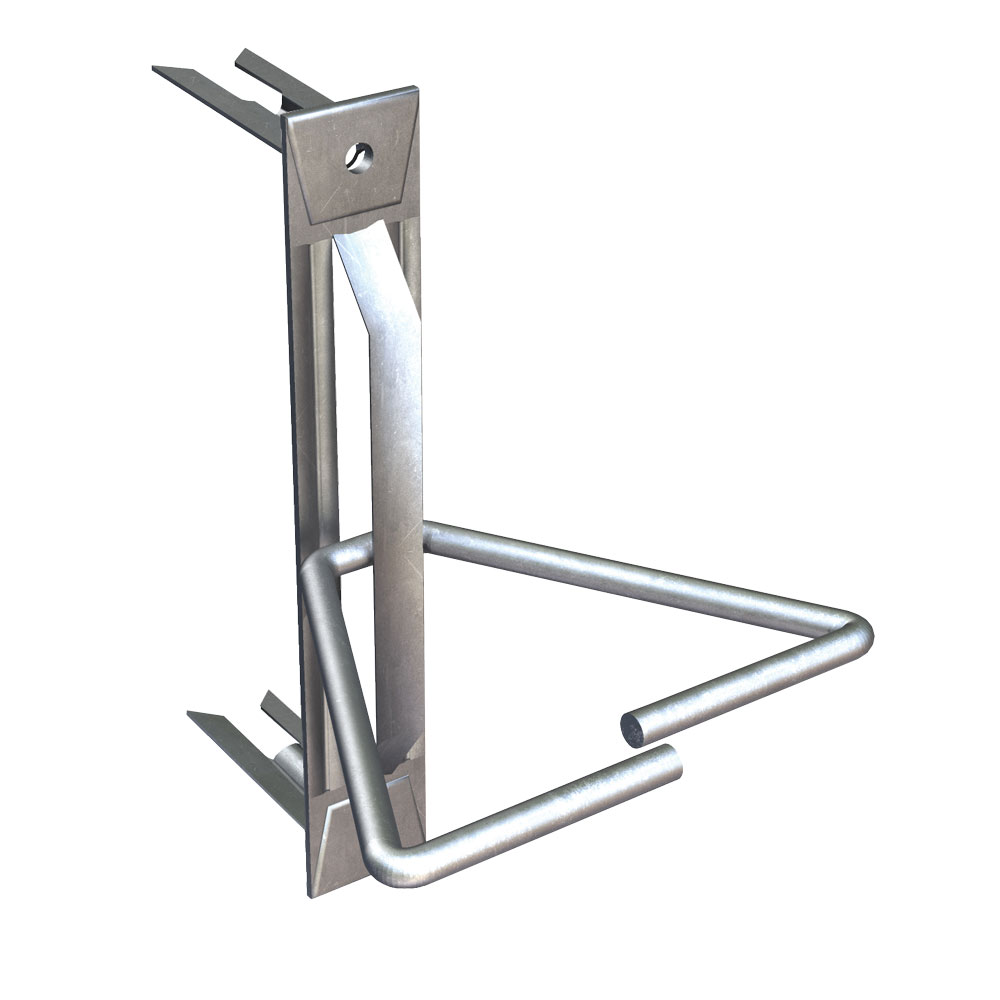

  • The X-SEAL® Anchor improves upon the DW-10-X by moving the horizontal pronged legs in from each end, enabling the backplate portion of the anchor to effectively seal the wallboard /insulation. This helps to maintain the integrity of the vapor barrier and prevents the ingress of air and moisture through the sheathing
  • The pronged legs are now also rib-stiffened and oriented closer to each other than on the original DW-10-X, thus enhancing the compressive strength BY OVER 20%!

AVAILABLE FINISHES:

  • Hot Dip Galvanized
  • Type 304 Stainless Steel

DIMENSIONS:

  • Available in leg lengths from ½” – 4-1/2” (combination of wallboard and or insulation)

NOTE:

  • X-SEAL® Tape is available for additional protection against air and moisture infiltration

Sizes

1/2"3/4"1"1 1/2"2"2 1/2"2 5/8"3"3 1/2"4"CUSTOM

Thickness/Gauge

14 gauge

Backup Type

Metal Stud

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Minimum Air Space Requirement

1/2"
