PRODUCT DESCRIPTION

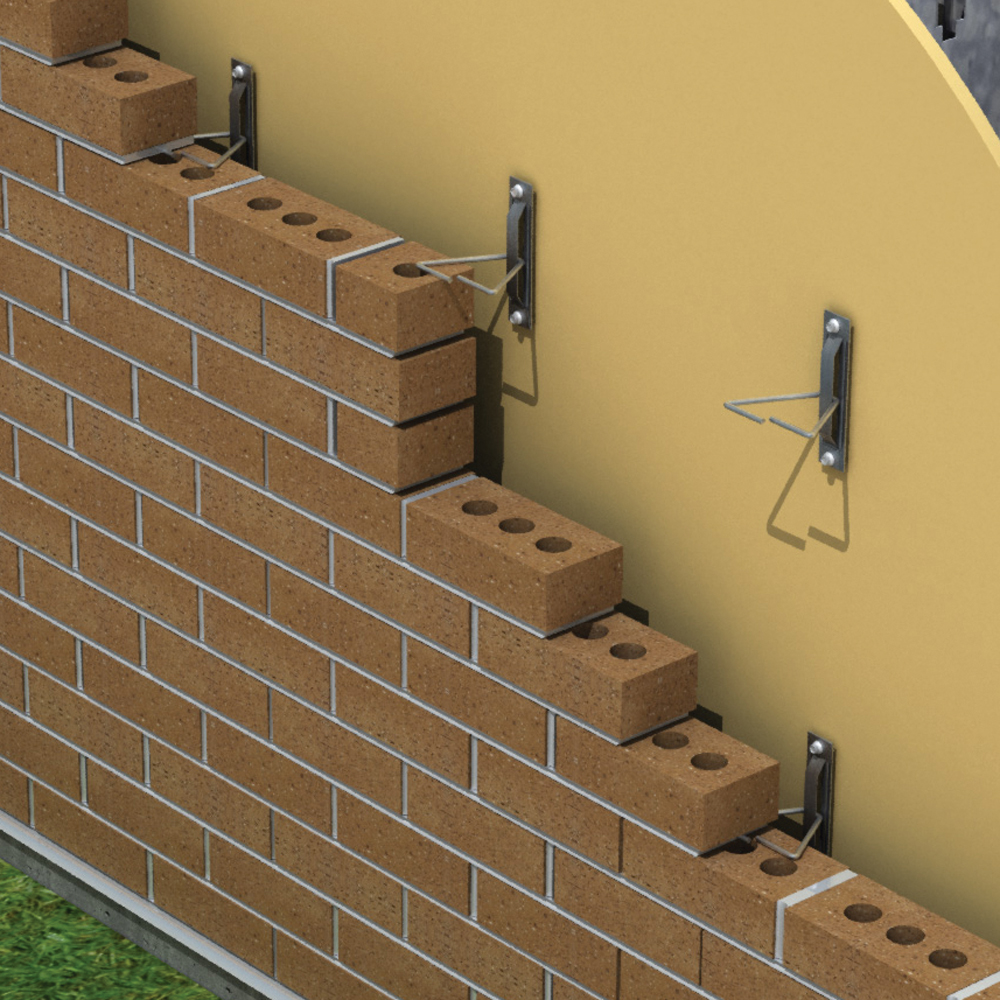

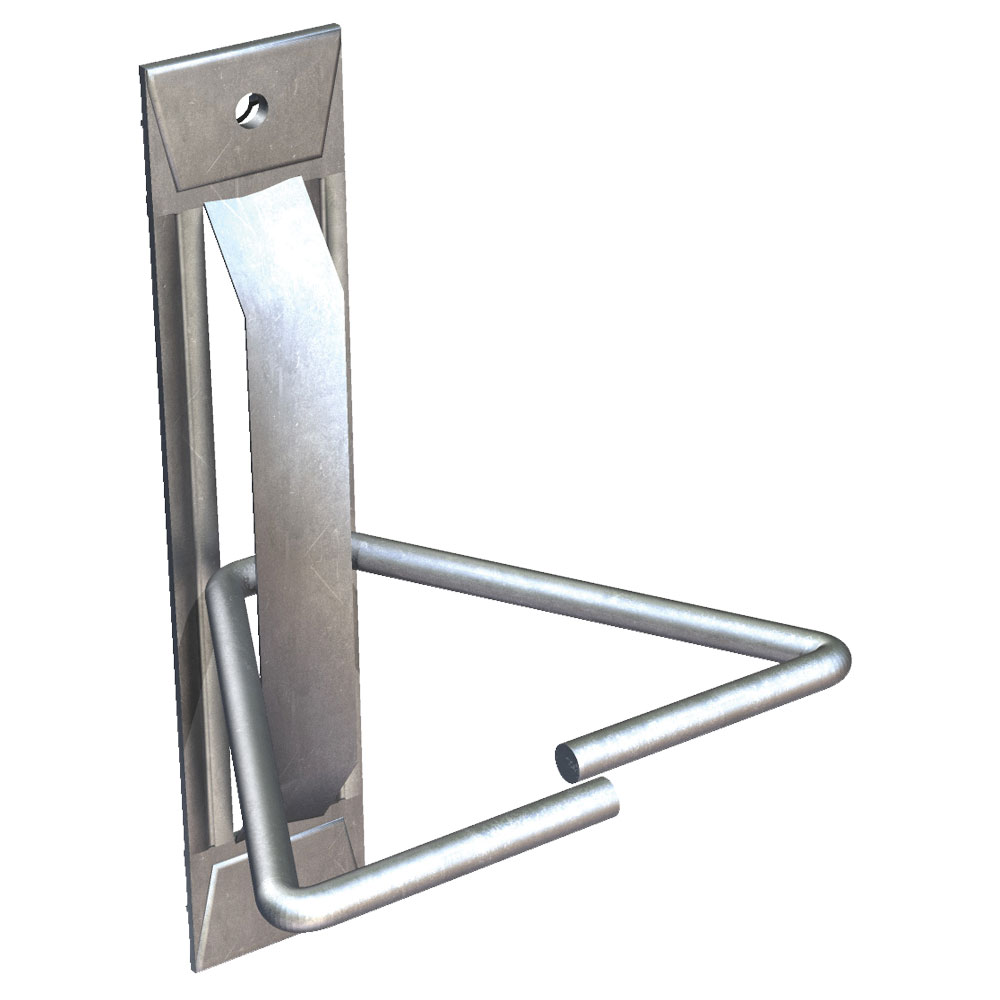

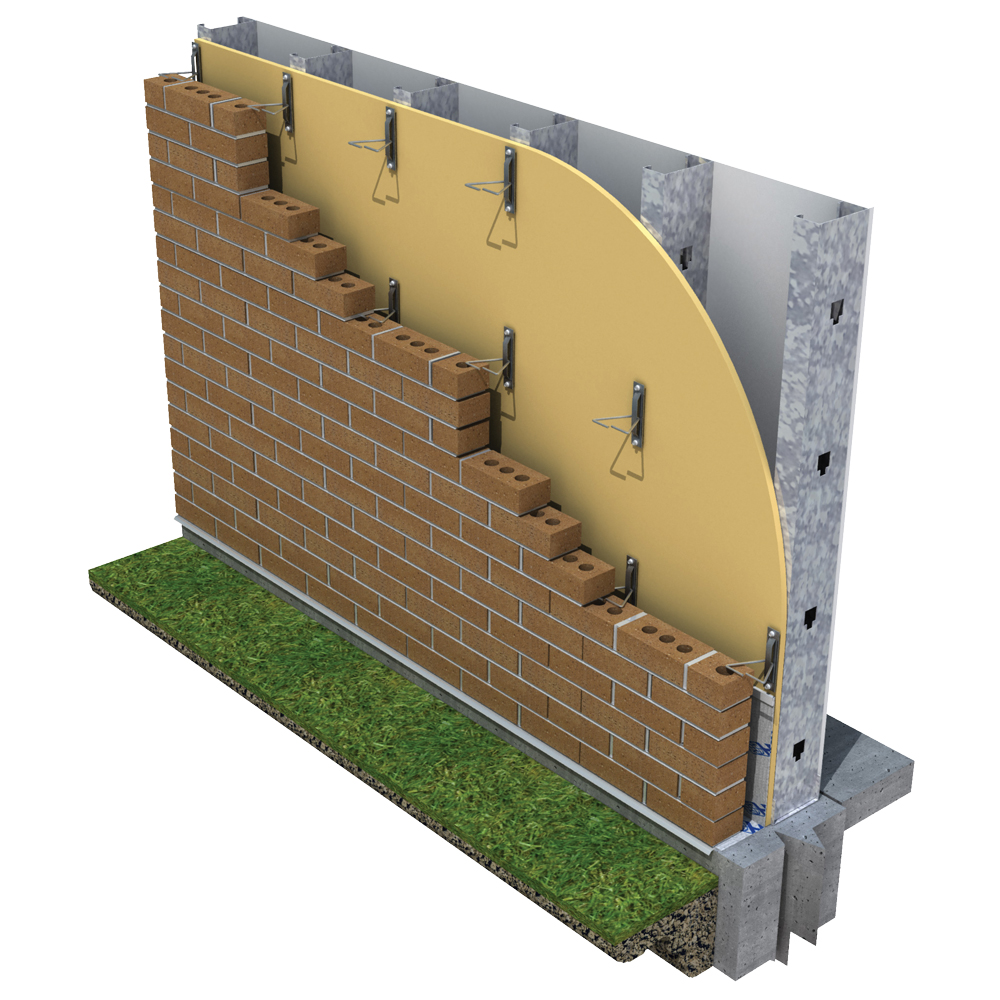

DW-10HS® is for anchoring brick veneer to metal stud, masonry, concrete or wood backup. (We carry a wide variety of screws for various types of backups.)

  • A High Strength version of the DW-10®
  • Primarily for use when there is no insulation and little potential for wallboard deterioration

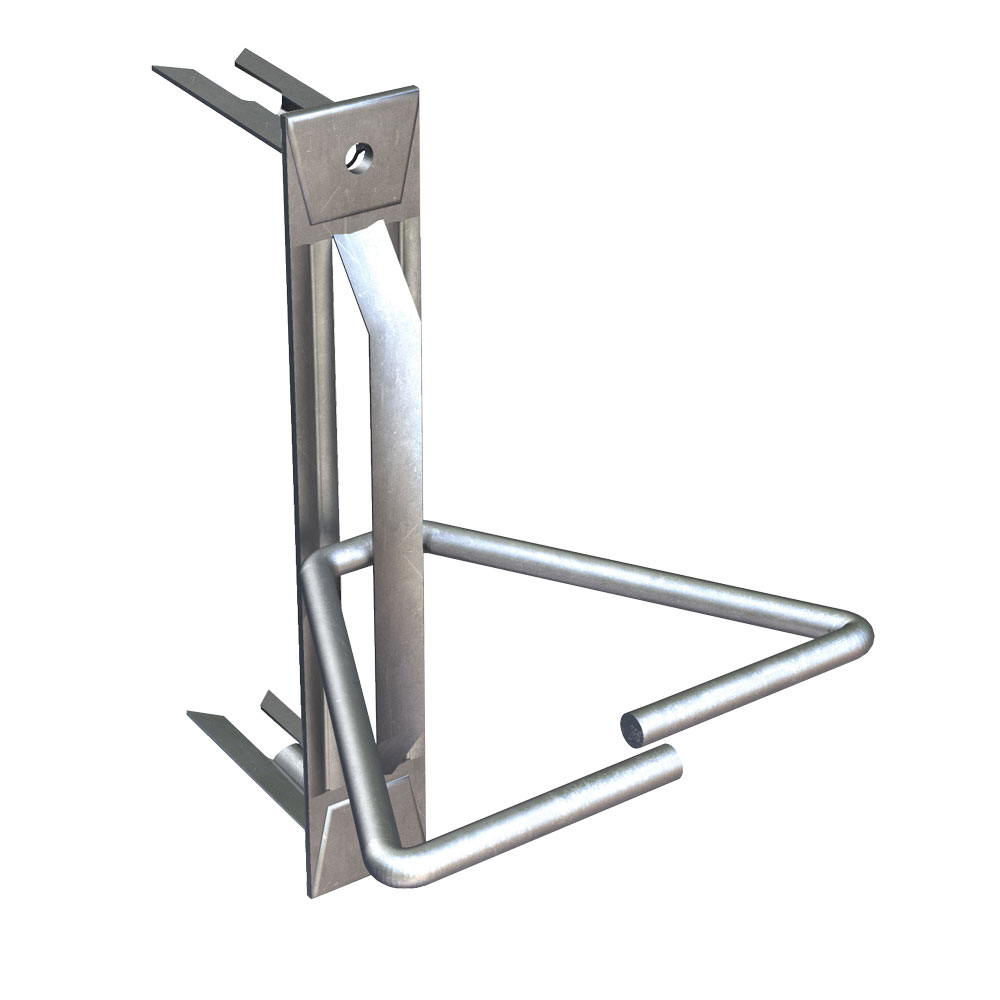

  • For insulated walls, or when there is concern about eventual wallboard deterioration, we recommend our X-SEAL® Anchor.

AVAILABLE FINISHES:

  • Mill Galvanized
  • Hot Dip Galvanized
  • Stainless Steel

DW-10HS® DIMENSIONS/GAUGES:

  • 5-1/2" long and has over 3” of vertical adjustability
  • Furnished with 9/32” DIA holes
  • Available in 14 ga. or 12 ga. thick

NOTE:

Vertical Adjustability

3"

Hole Diameter

9/32"Ø (STANDARD)

Thickness/Gauge

12 gauge14 gauge

Backup Type

BrickCMUConcreteWood StudMetal Stud

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Minimum Air Space Requirement

1/2"
