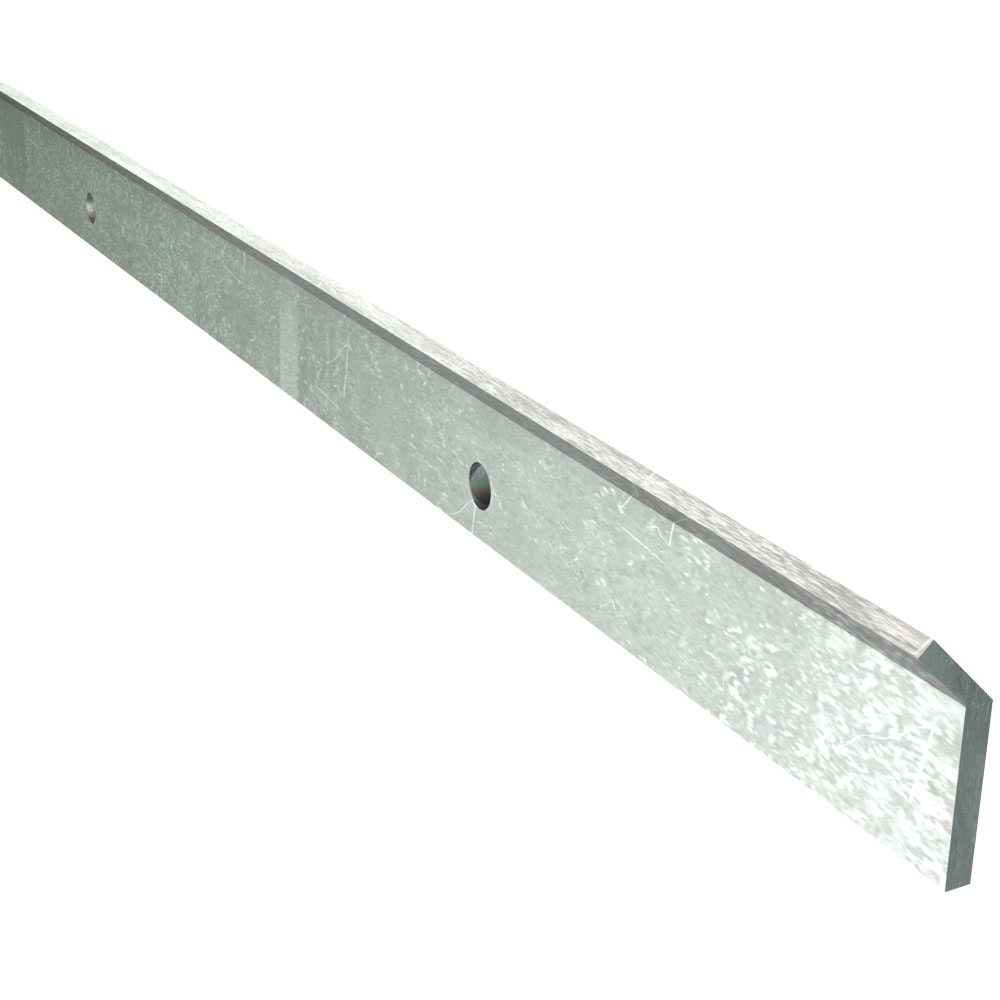

T2 - TERMINATION BAR

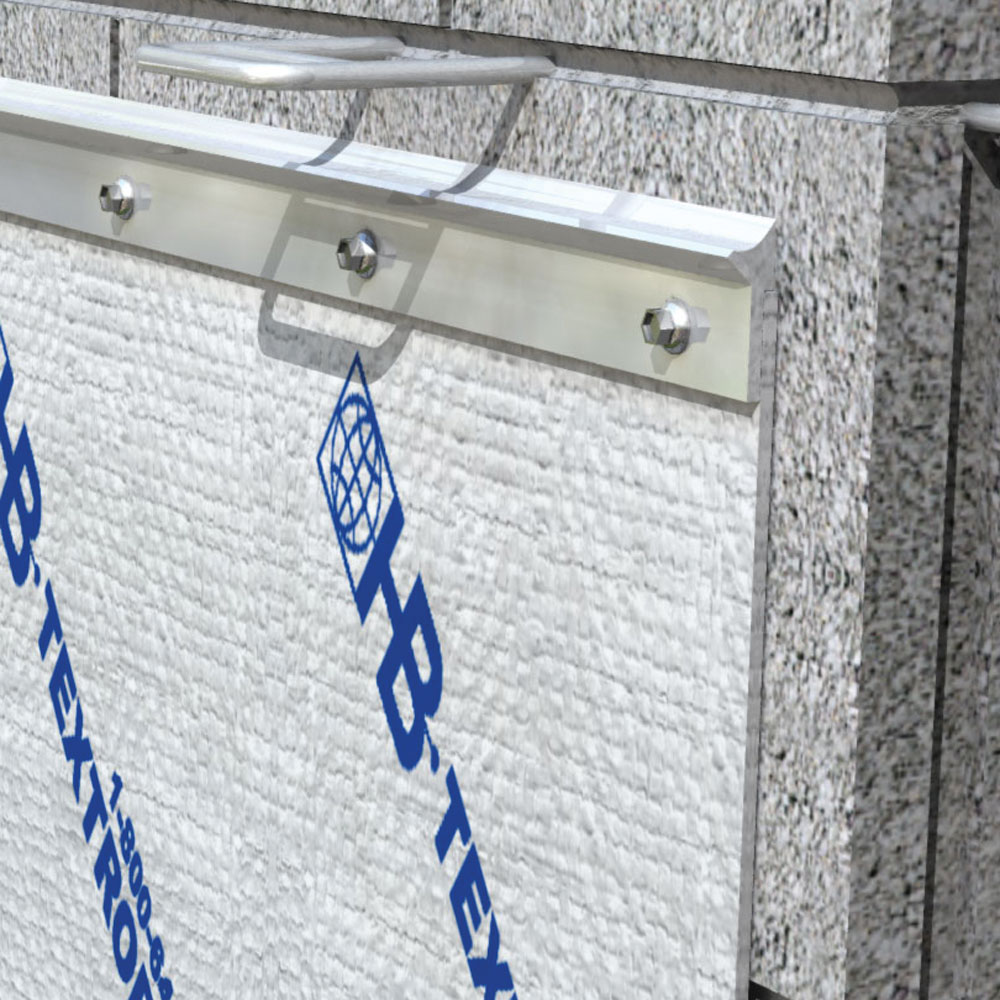

T2 - Termination Bar features a flange on top for easy caulking and  is used at top of flashing to secure it to the backup.

• Compatible with all H&B flashing products.
• Available in Stainless Steel or Aluminum
• 1/4” holes spaced 8” on center

AVAILABLE FINISHES:

• Type 304 Stainless Steel
• Aluminum

STAINLESS STEEL DIMENSIONS:

• 26 ga. x 1-1/2”x 8’ long
• Has a 3/8” flange on top for easy caulking

ALUMINUM DIMENSIONS:

• 14 ga. x 1” x 8’ long
• Has a 1/4” flange on top for easy caulking

NOTE:

• Alternate styles available: T1
• Available with optional Foam-Tite Seal™ to aid in inhibiting moisture infiltration
  • This factory-installed foam strip helps seal small voids occurring between the termination bar and any irregular surfaces of the substrate, while offering added protection against water penetration due to deterioration of the sealant
  • FTS - Foam-Tite Seal™ : specify T2-FTS when ordering
• U.S. Pats. No. 6,945,000
  Patents Pending
