SPIRA-LOK® HELICAL WALL TIE SYSTEM

Spira-Lok® is the Original Helical Wall Tie System

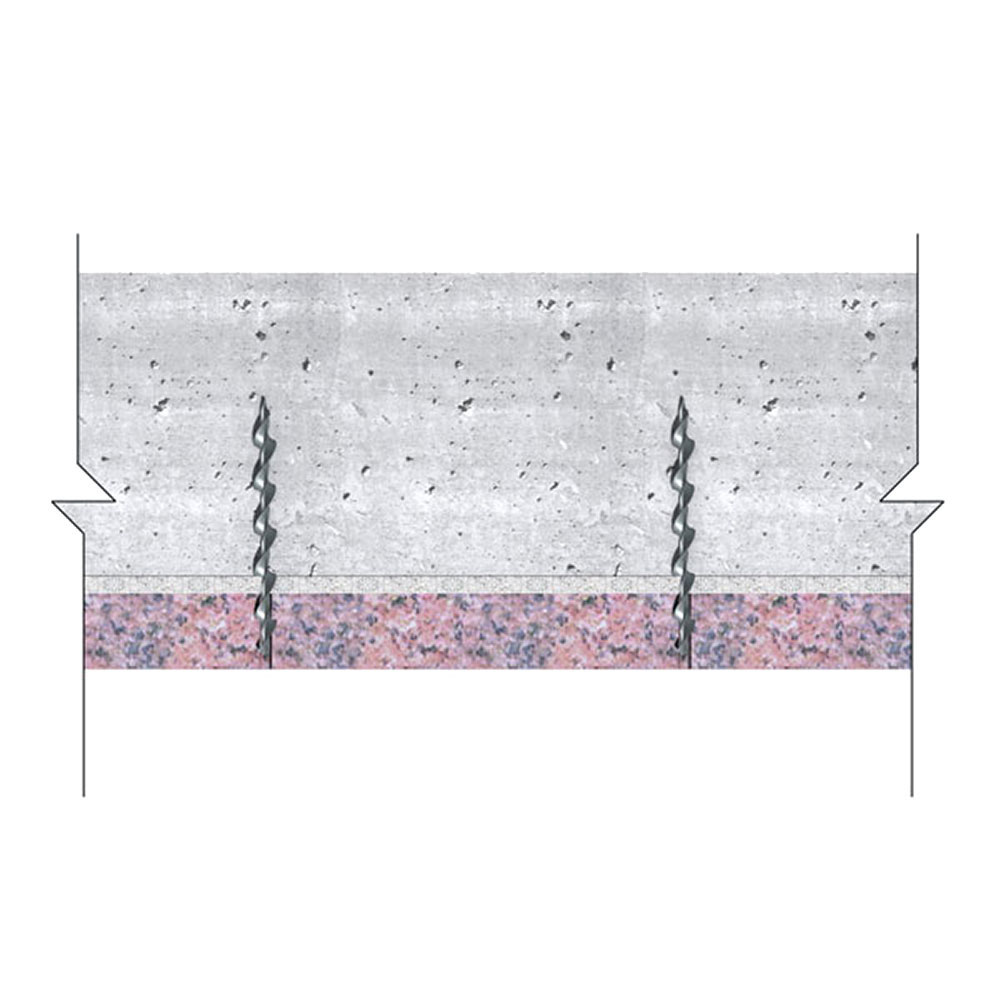

A one-piece, flexible stainless steel wall tie for pinning masonry to new or existing walls. Also suitable for temporary support for lintel and shelf angle replacement. The dry-set technique may involve various tie diameters, drill bits and installation tools.

Features:

• Only a small diameter pilot hole required.
• No toxic adhesives or expansion devices.
• Site-tested immediately after installation.
• Functional in a wide variety of building materials.
• Able to withstand cyclic loading.
• Accommodates differential movements between materials.
• Does not stress or fracture fragile substrates.

DIMENSIONS:

• Available in 8 mm or 10 mm diameter x 6-1/8" (155 mm) to 24" (600 mm) long.

AVAILABLE FINISHES:

• Stainless Steel Type 304
• 316 available by special order

NOTE:

• An on-site survey should be carried out prior to project tendering to determine material strength, tie diameter & length, pilot hole size and appropriate drilling technique.
