QV - QUADRO-VENT™
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
CADZIP Downloads

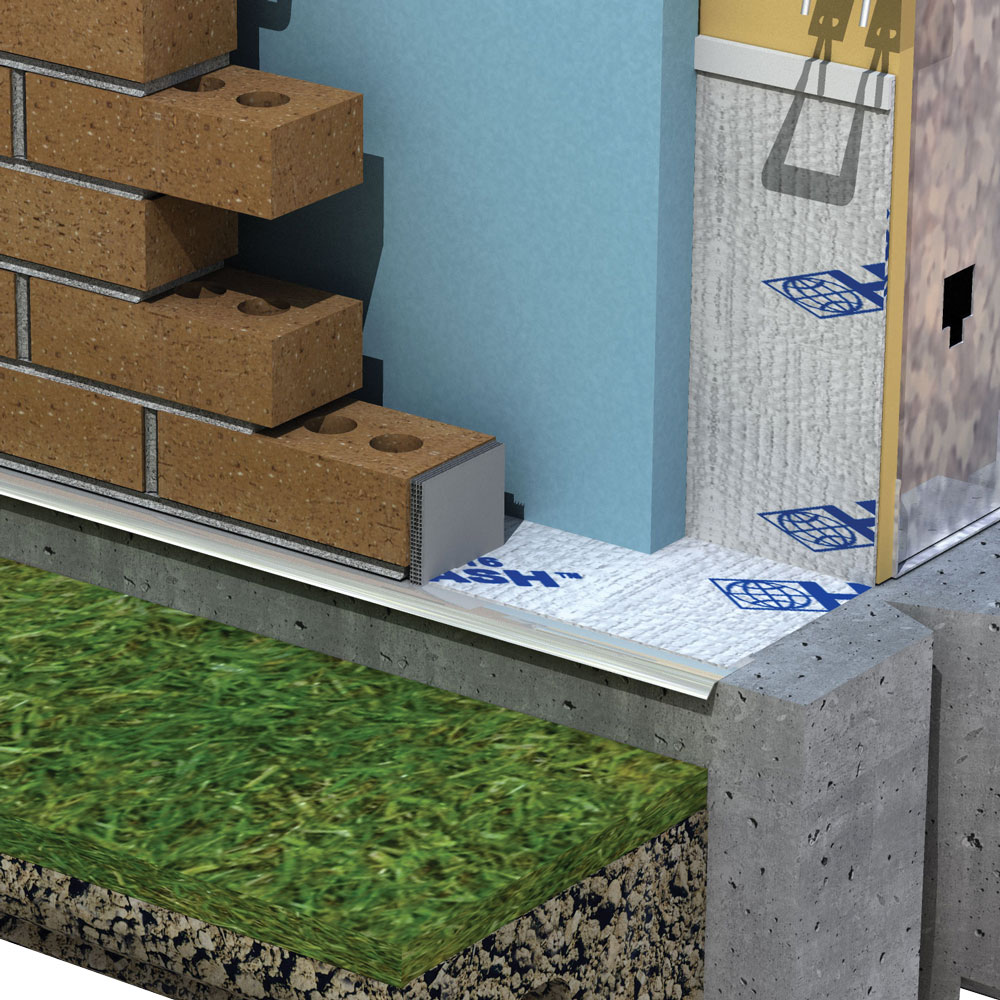

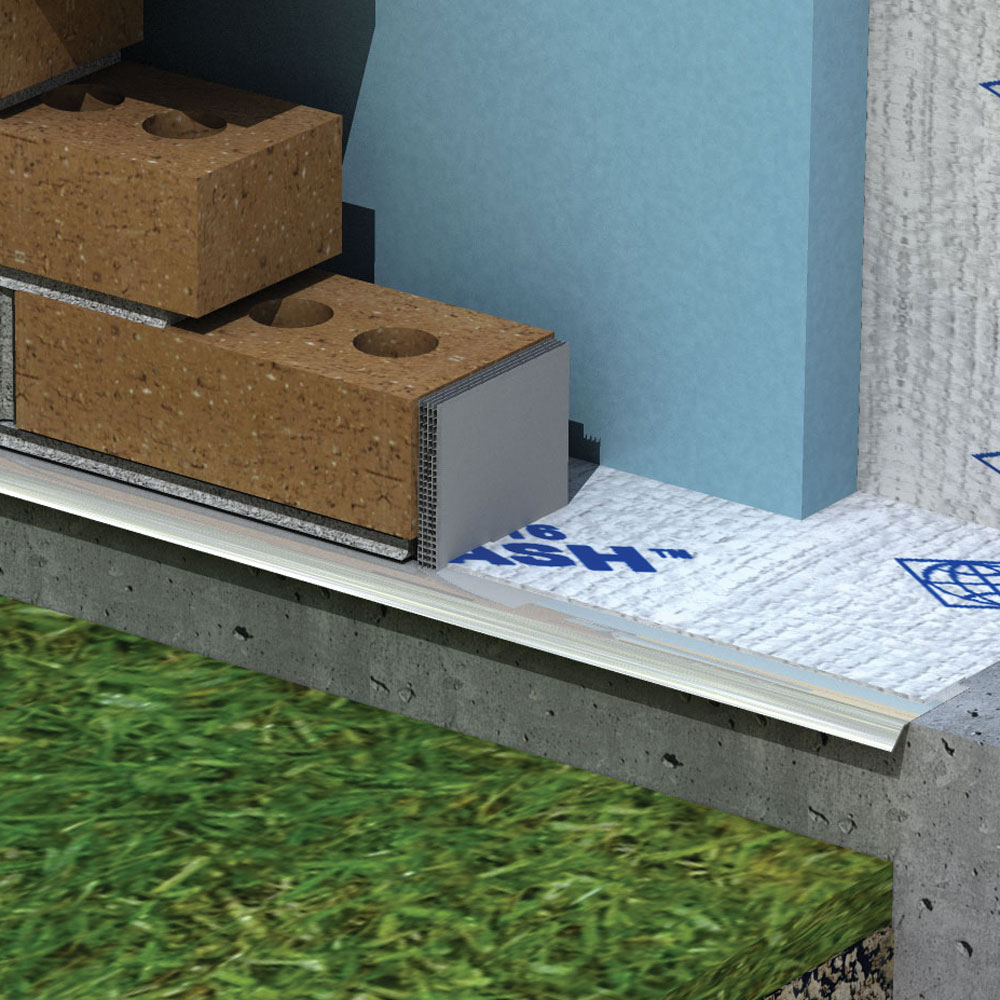

QV - Quadro-Vent's honeycomb design restricts ingress of insects and other debris while allowing passage of moisture up to its 2-1/2” height, important in the event of mortar droppings at bottom of cavity.
- Quadro-Vent™ allows passage of moisture up to its 2 1/2" height, important in the event of mortar droppings at bottom of the cavity
- Polypropylene tested in conformance with ASTM D2240, D790B, D638 and D1238B
- Suitable for top of wall venting
- Custom sizes available upon request

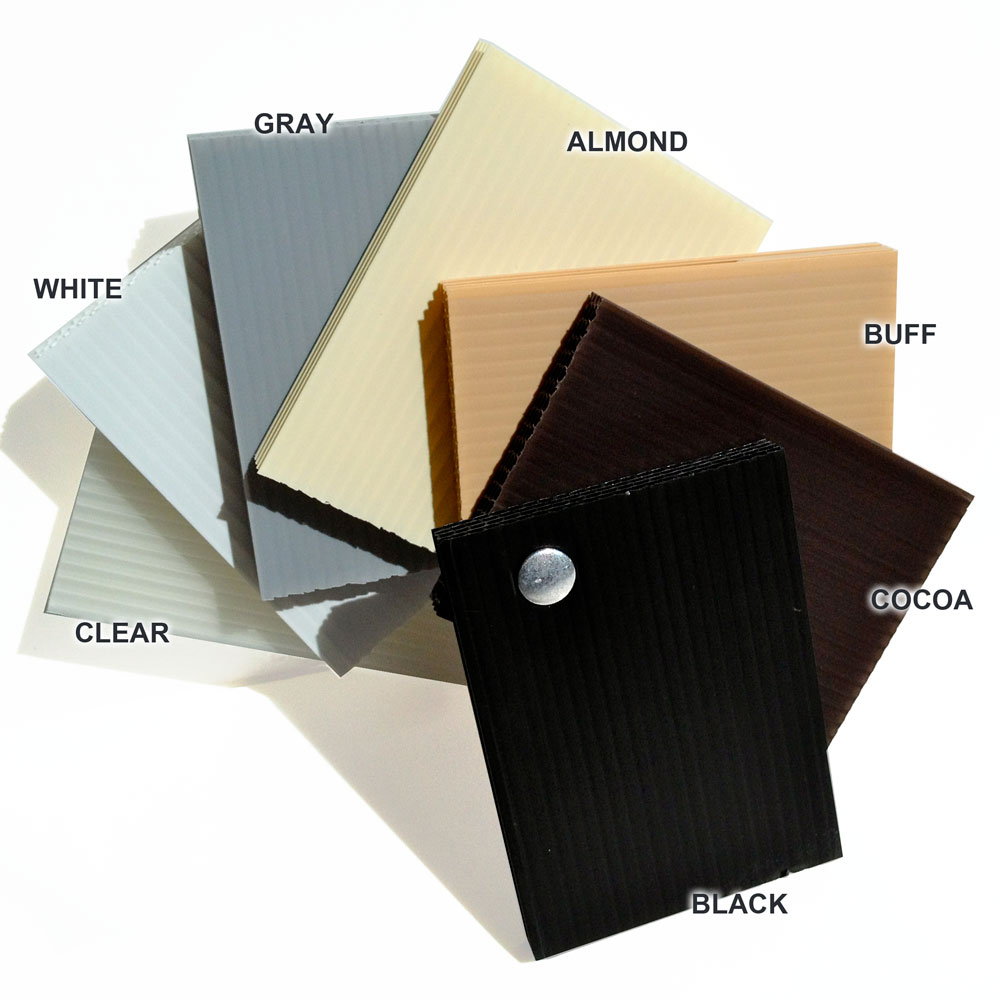

GrayClearBuffAlmondBlackCocoaWhite
Standard size: 3/8" x 2-1/2" x 3-3/8"Jumbo size: 3/8" x 3-1/2" x 3-1/2"
