PTA SERIES ANCHORS - PTA 422

Product Image

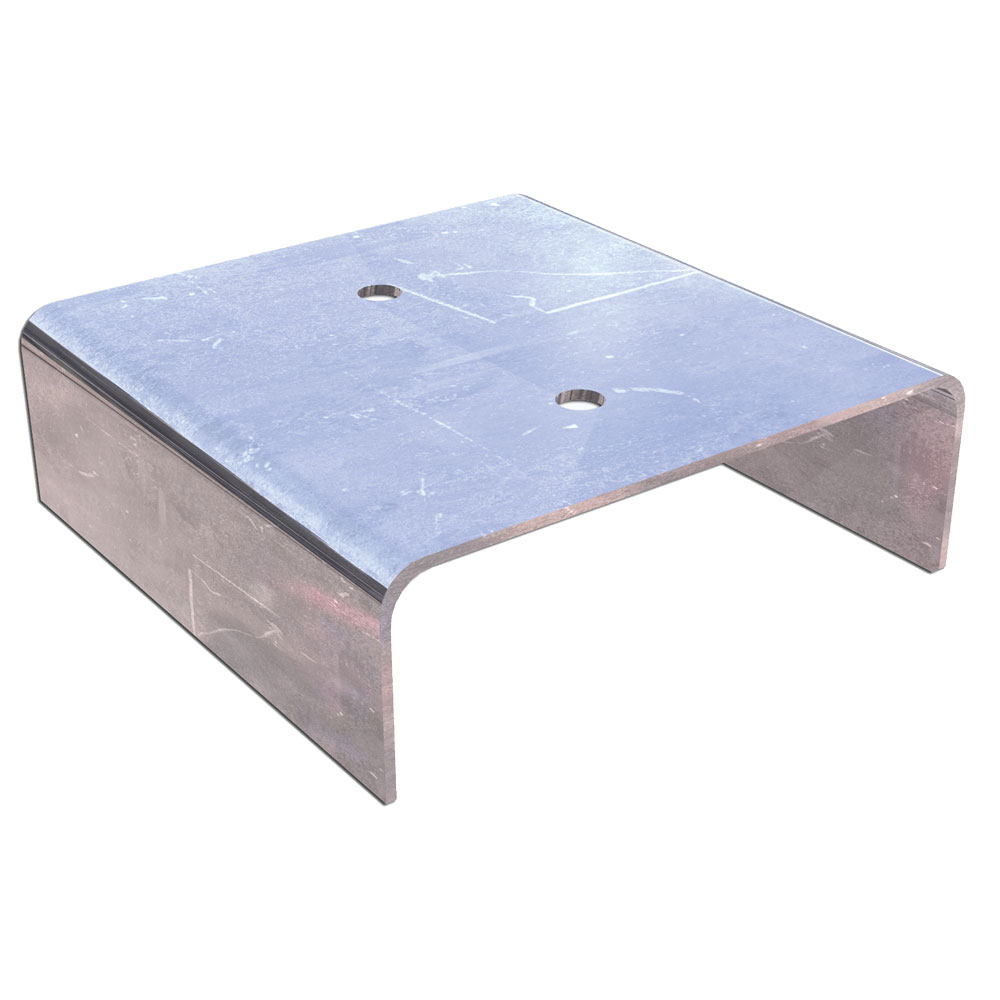

PTA-422 partition top anchor
Product Image
Product Image
Product Image
Product Image
PTA-422 partition top anchor
PTA-422 partition top anchor
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

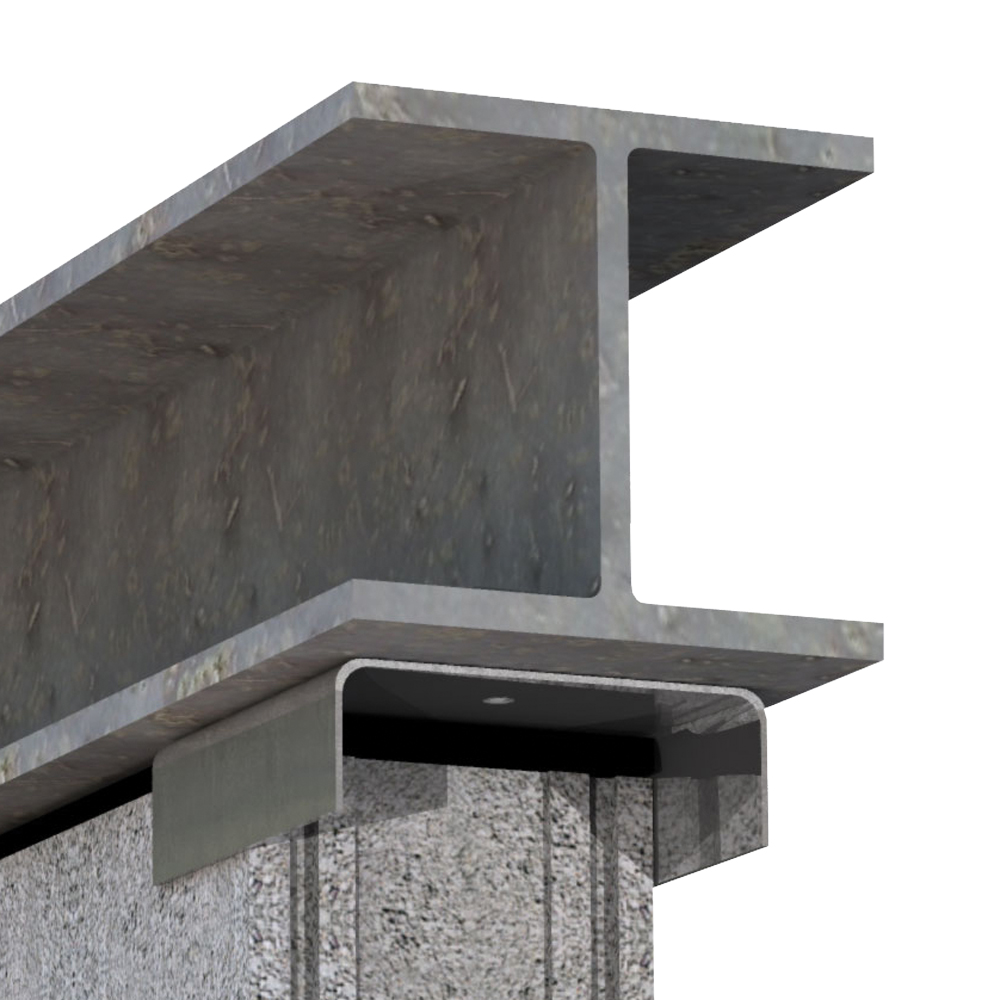

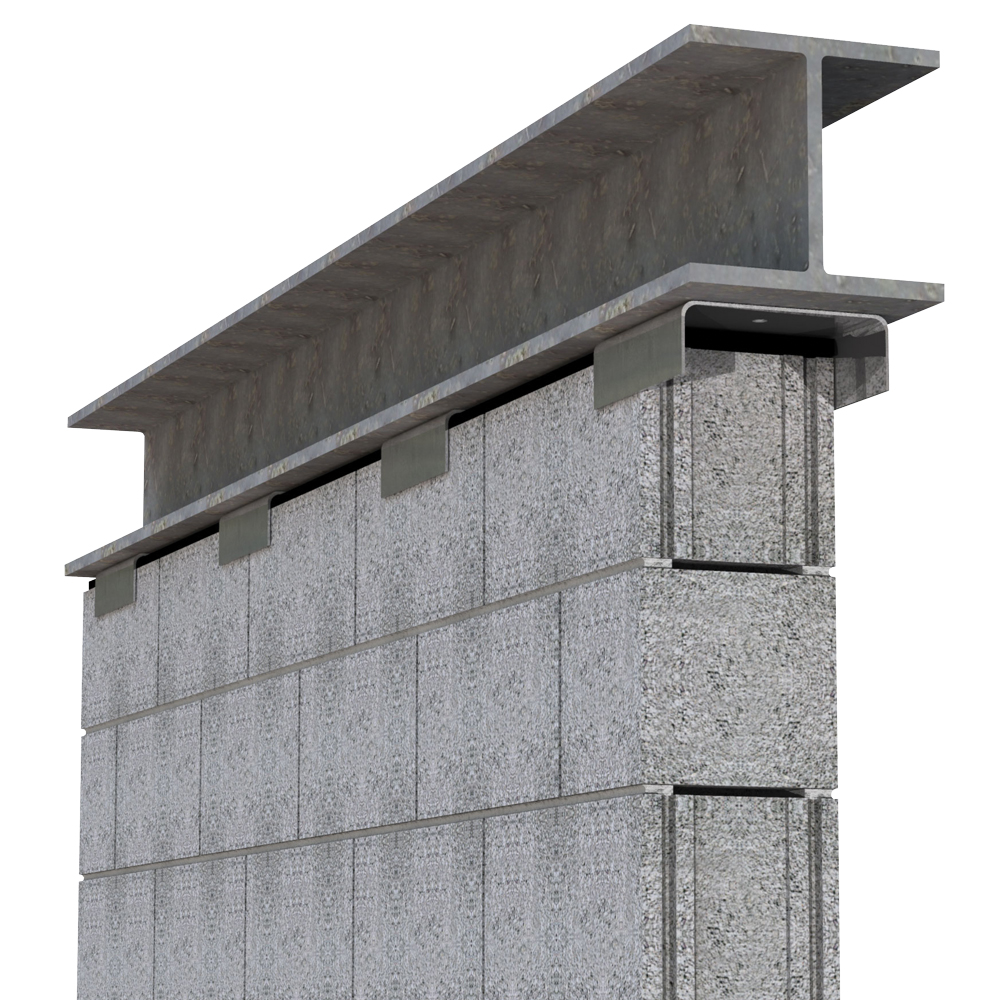

PTA 422 Partition Top Anchors have been developed to provide lateral shear resistance at the upper limit of masonry walls.

  • They permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.
  • PTA Tube is not required with the PTA-422. H&B's NS Neoprene Sponge placed between the concrete block and the PTA-422 allows vertical expansion and contraction.
  • PTA Series Anchorsare suitable for construction using steel or concrete.

DIMENSIONS/GAUGES:

  • 12 ga. thick
  • Available for 4”-12” block
  • Holes 7/16" dia.

NOTE:

  • Special high-load designs can be manufactured on a special order basis contact our technical department for information.

Hole Diameter

7/16"Ø

Lengths

8"CUSTOM

Thickness/Gauge

12 gaugeCUSTOM

Block Size

4"6"8"10"12"CUSTOM

Finishes/Materials

Mill GalvanizedHot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Bend Length

2" (Standard)CUSTOM
