DP - DRIP PLATES/EDGES

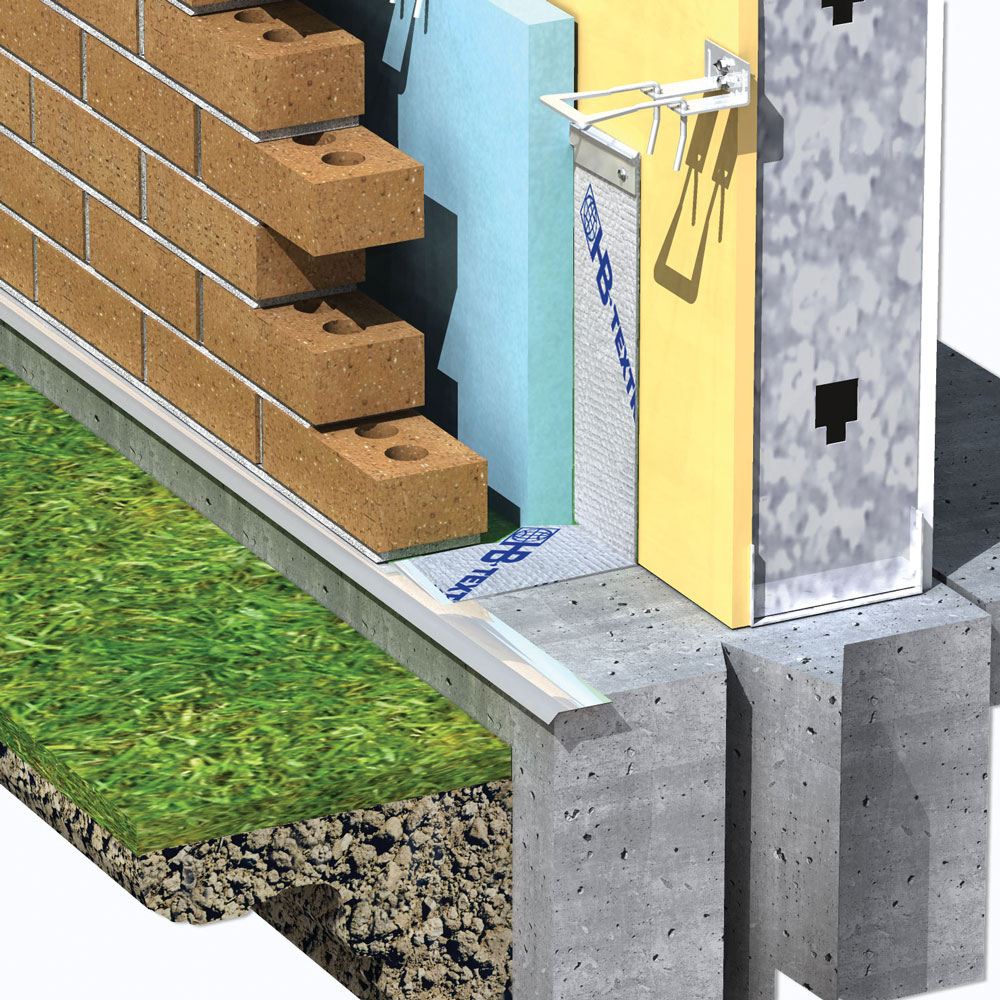

Drip Plates (Drip Edge)

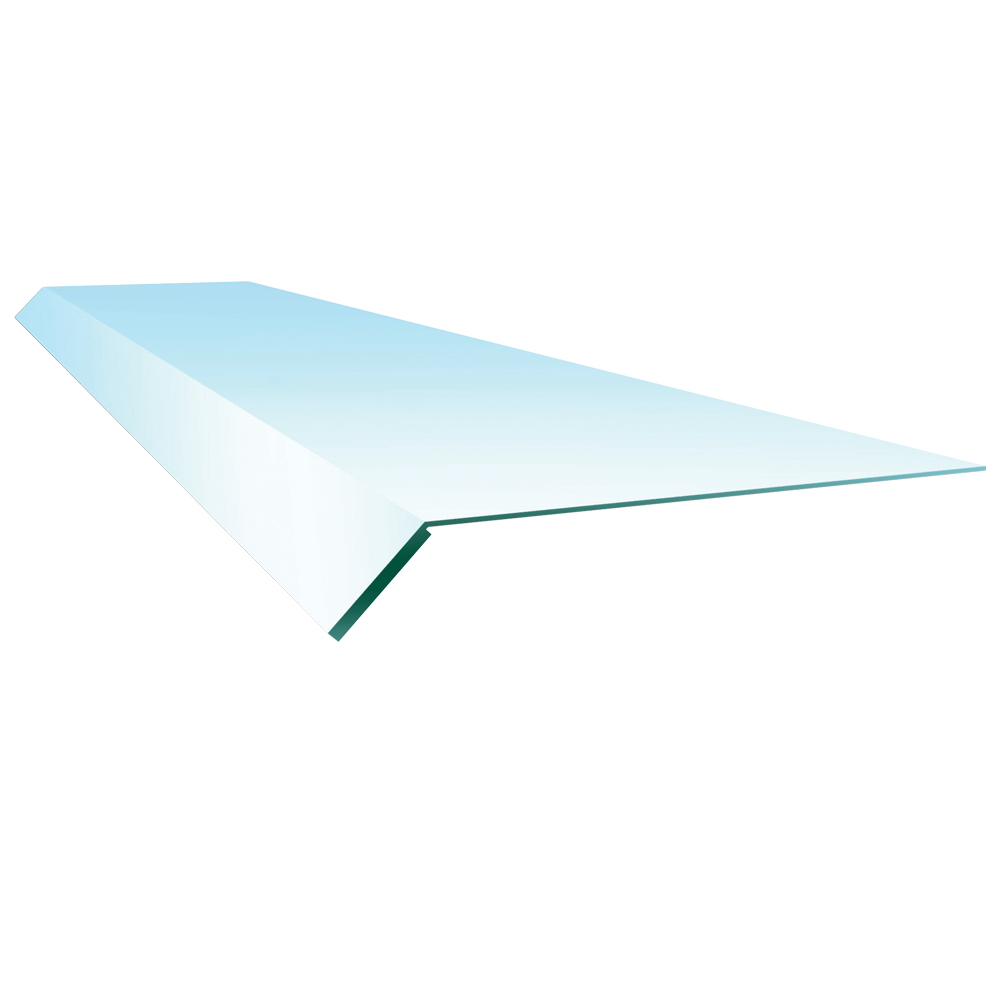

• DP
  • Our Standard Drip Plate, furnished with a smooth, factory-formed hemmed edge for installation safety and uniform appearance.
  • Standard DP Drip Plates are compatible with all H&B flashing products.
  • DP-LB
    • Same as above, for lip brick conditions.

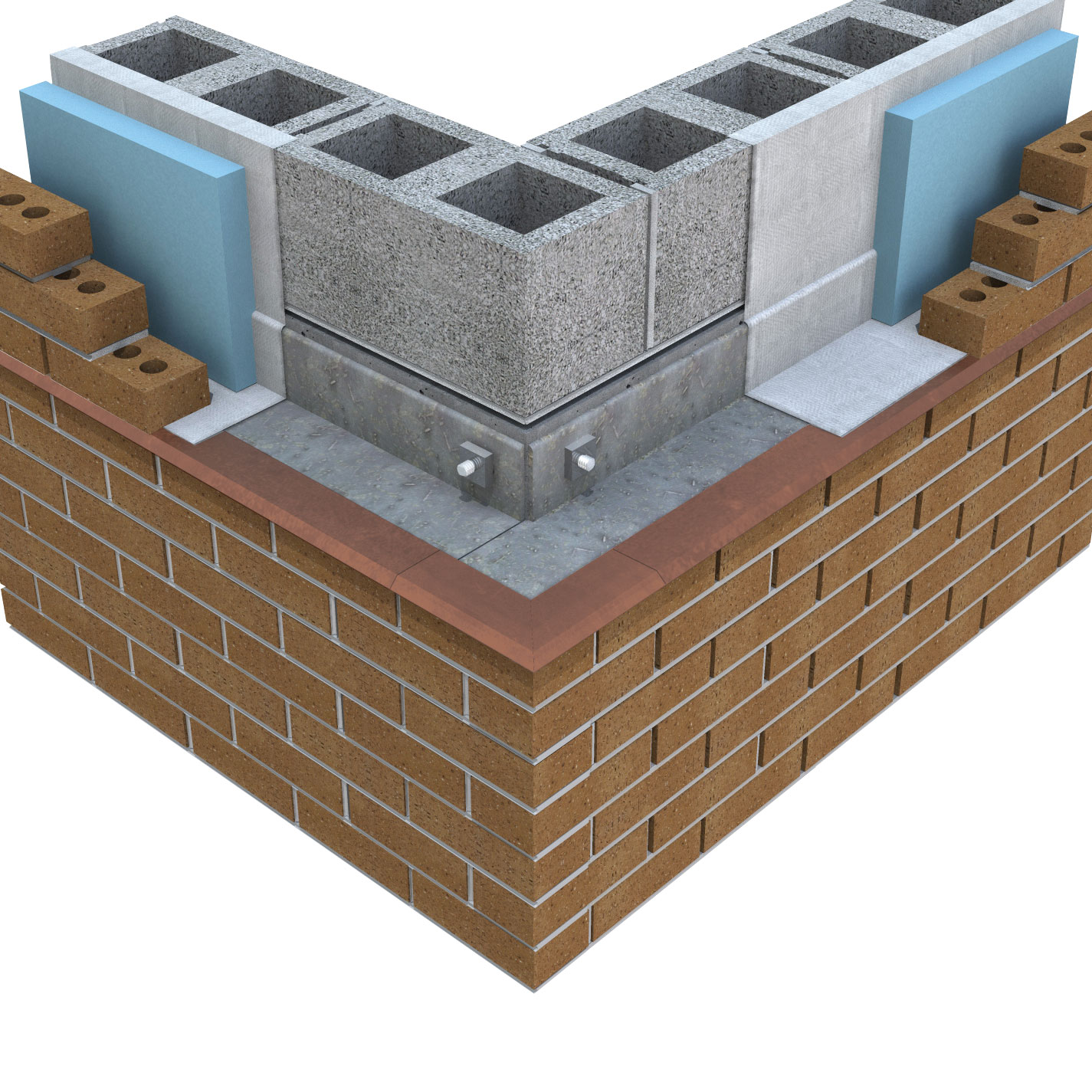

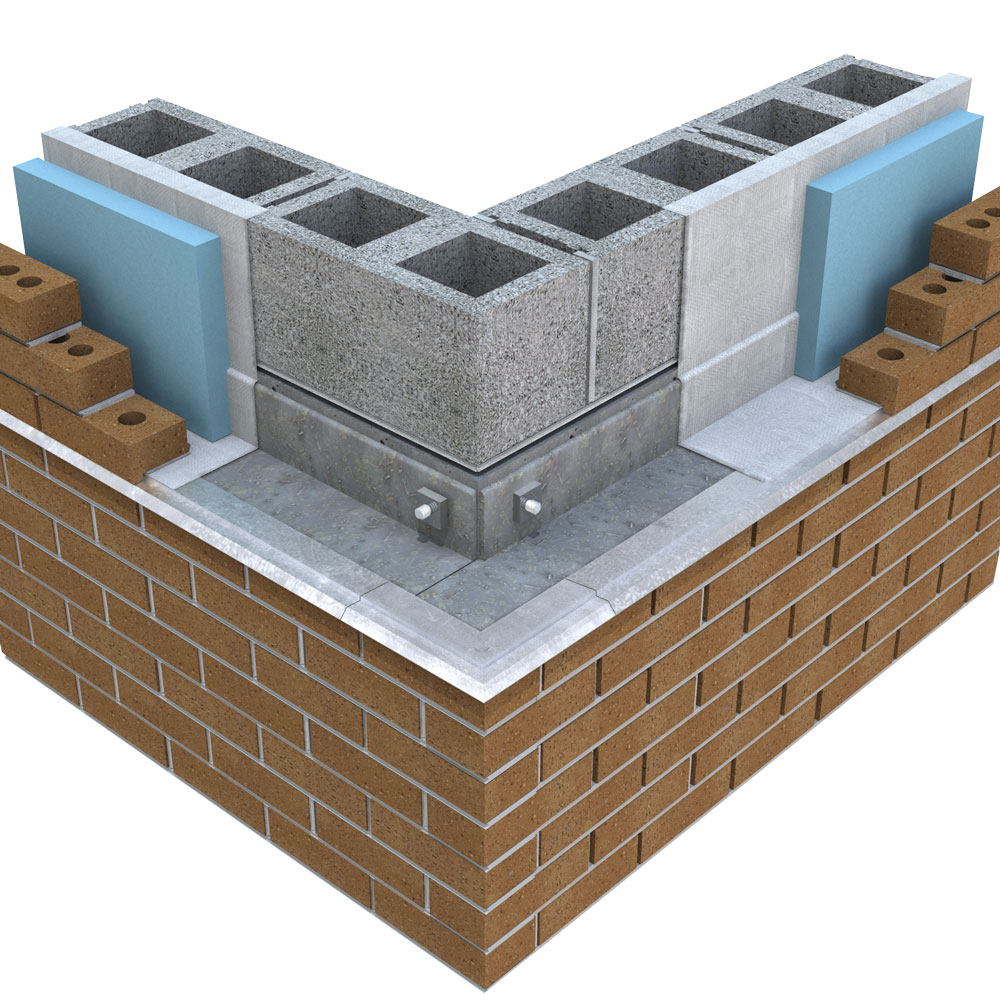

• Drip Plate Corners
  • Drip Plate Inside and Outside Corners are pre-formed pieces with a smooth, uninterrupted, hemmed drip edge to maintain the integrity of the flashing system.
  • For corner pieces, reference “inside” or “outside” with above product numbers.

NOTE:

• The ASTM A480 standard specifies the thickness requirements for stainless steel sheets. When manufacturing stainless steel flashing and drip plates, the commonly specified standard thickness is 0.016 inches (0.40 mm), which correlates to the 26-gauge standard. H&B's Drip Plate adheres to these guidelines, falling within the acceptable range for 26 gauge with the tolerances as outlined by ASTM A480.U.S. Pat. No. 6,584,746 Other Patents Pending
• H&B sources Stainless Steel from a wide variety of vendors. Per the International Stainless SteelForum, Stainless Steel objects have an average of 60% recycled content.
• H&B does NOT recommend the use of galvanized sheet as a drip plate/edge.

*When cleaning the exterior veneer, the cleaner’s manufacturer recommendations for protecting metal must be followed.
