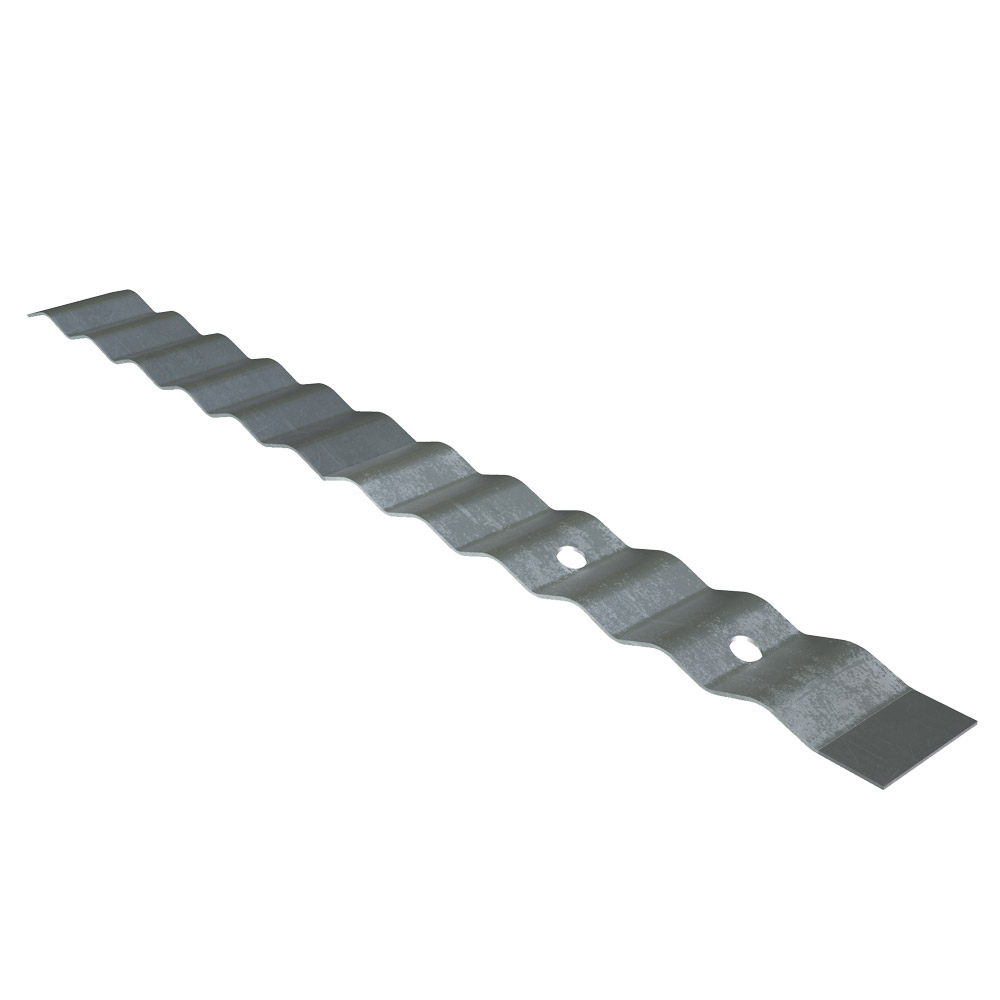

CWT - CORRUGATED WALL TIE

CWT - Corrugated Wall Tie-6
cwt corrugated wall tie product image
CWT - Corrugated Wall Tie-1
CWT - Corrugated Wall Tie-2
CWT - Corrugated Wall Tie-3
CWT - Corrugated Wall Tie-4
CWT - Corrugated Wall Tie-5
CWT - Corrugated Wall Tie-6
cwt corrugated wall tie product image
cwt corrugated wall tie product image
CWT - Corrugated Wall Tie-1
CWT - Corrugated Wall Tie-2
CWT - Corrugated Wall Tie-3
CWT - Corrugated Wall Tie-4
CWT - Corrugated Wall Tie-5
CWT - Corrugated Wall Tie-6
DOCUMENTS & DOWNLOADS
Submittal SheetsSubmittal SheetsClick on the text link below to download

Submittal SheetsPDF Downloads

SafetydataSafetydataClick on the text link below to download

Safety Data SheetsPDF Downloads

CadCadClick on the text link below to download

CADZIP Downloads

GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

The Corrugated Wall Tie is for anchoring wood stud to masonry. This product is only recommended for use in residential construction.

DIMENSIONS:

  • Standard size is 7/8" wide X 7" long
  • Other widths, lengths and gauges available upon request

Vertical Adjustability

0"

Hole Diameter

3/16"Ø

Lengths

CUSTOM7"

Thickness/Gauge

22 gaugeCUSTOM

Widths

7/8"CUSTOM

Backup Type

Wood Stud

Finishes/Materials

Mill GalvanizedHot-Dip GalvanizedType 304 - Stainless Steel

Minimum Air Space Requirement

1/4"
