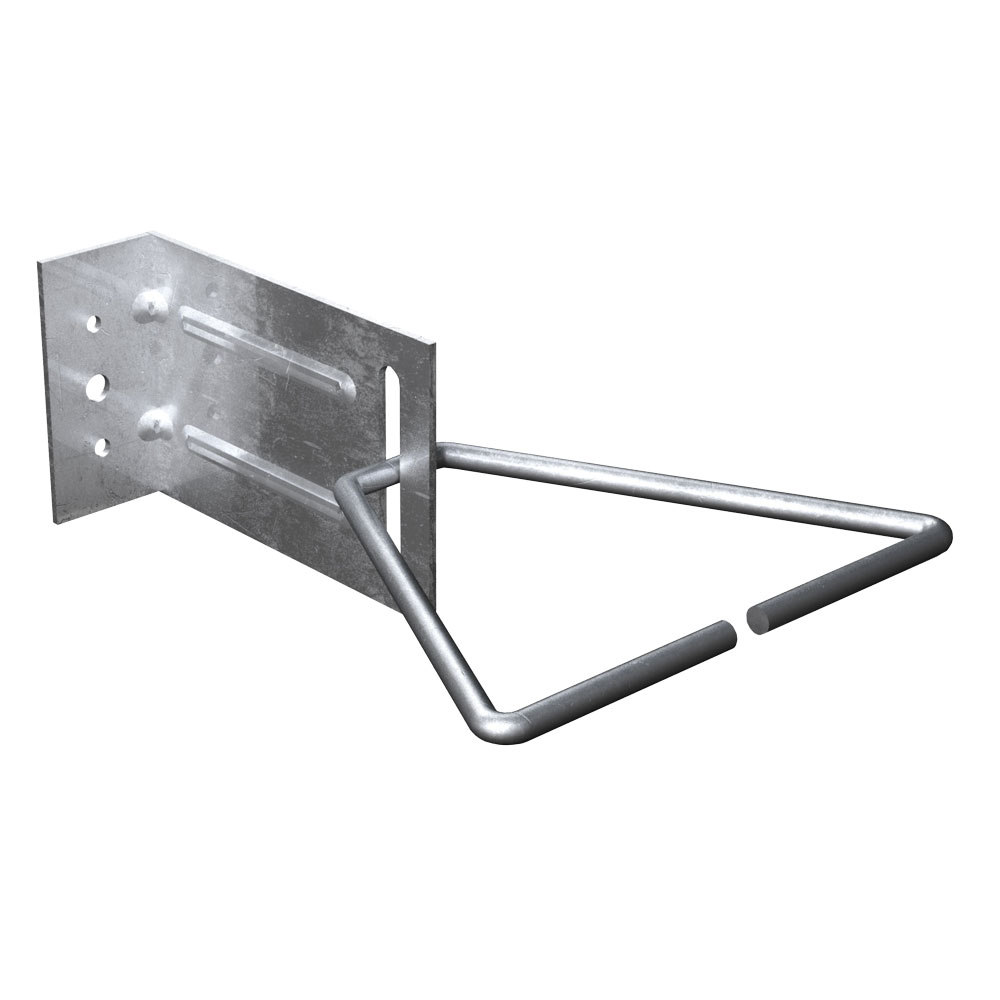

BL-407 ANCHOR

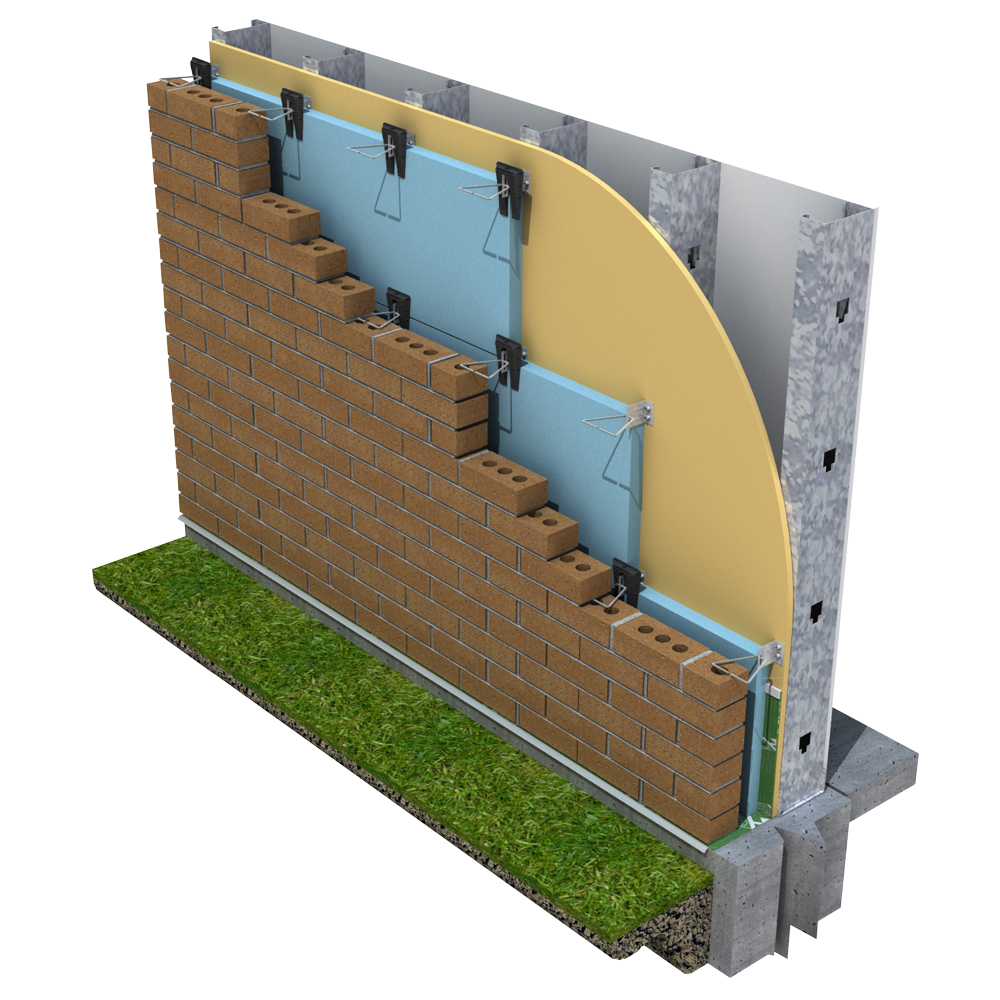

BL-407 is a wire tie and plate combination system that provides adjustability, strength, stiffness, positive connection, corrosion resistance, and is test rated.

AVAILABLE FINISHES:

• Hot-Dip Galvanized
• Type 304 Stainless Steel (Type 316 Optional)

DIMENSIONS/GAUGES:

• 16 gauge
• BL-407 backplate accommodates a variety of insulation thicknesses: 0" , 1" (25.4 mm), 1 1/2" (38 mm), 2" (51 mm), 2 1/2" (64 mm), 3" (76 mm), 3 1/2" (89 mm) and 4" (102 mm)

NOTES:

• Available with optional Wedge-Lok® insulation washer
• Use the 523 Brass Expansion Bolt (in center hole of plate) when fastening to concrete, block, brick and mortar joints.
• The combination of the 523 Bolt and the BL-407 plate is available as the BL-5407 repair and restoration anchor (also known as the Brick-Lok® System), for refacing or veneering existing masonry or concrete structures.
• This product replaces the SBRA anchor
