ASKEW HEAD BOLT

DOCUMENTS & DOWNLOADS

Submittal SheetsPDF Downloads

Safety Data SheetsPDF Downloads

Submittal Package Generator

Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

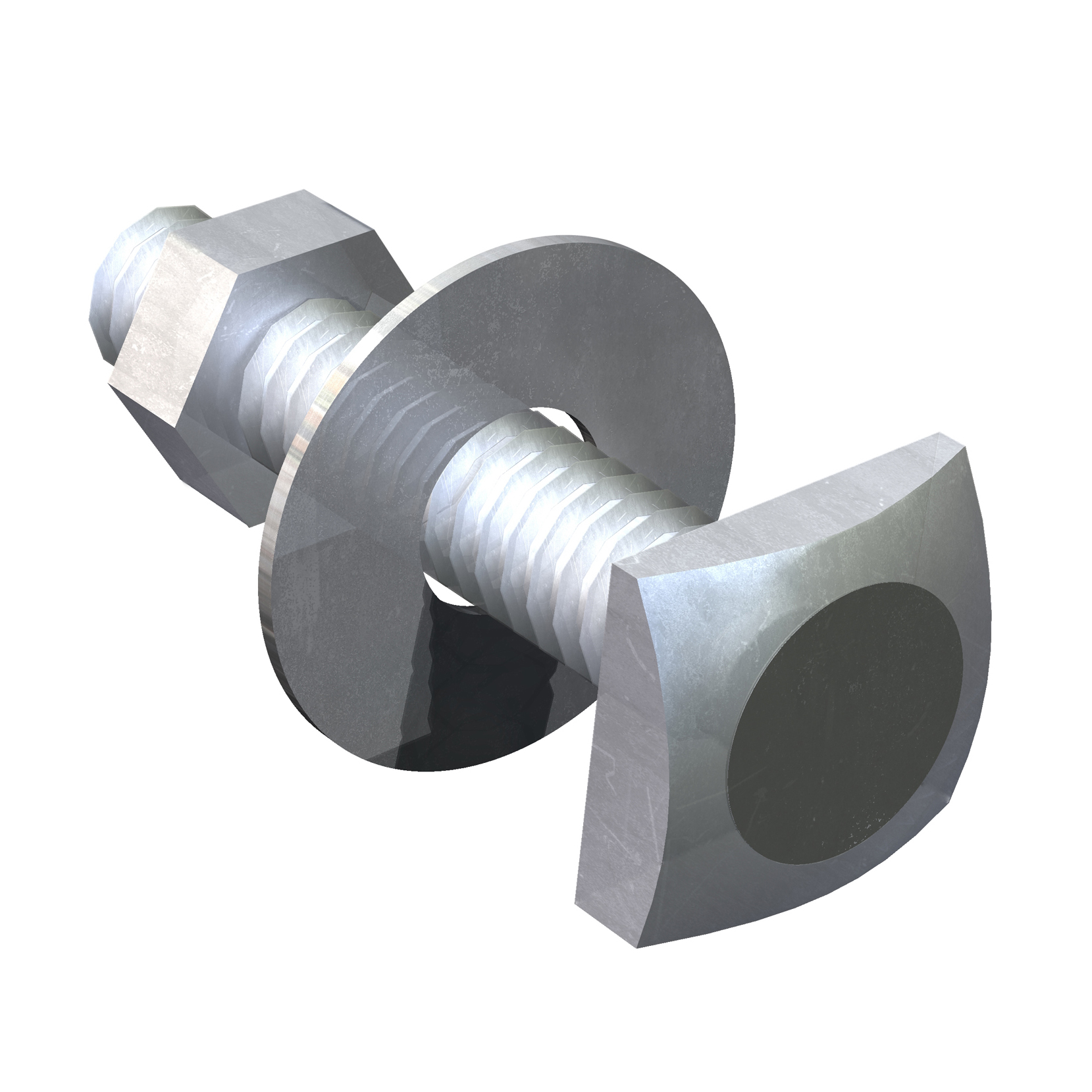

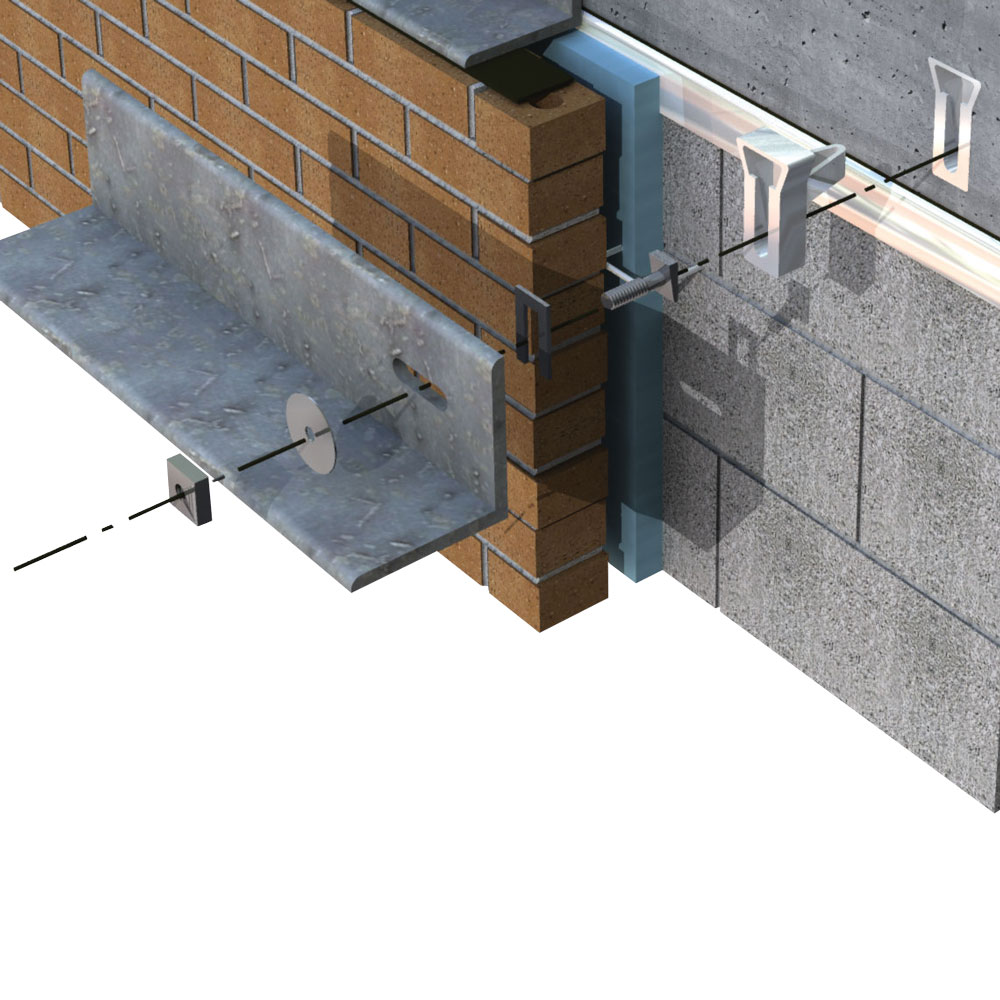

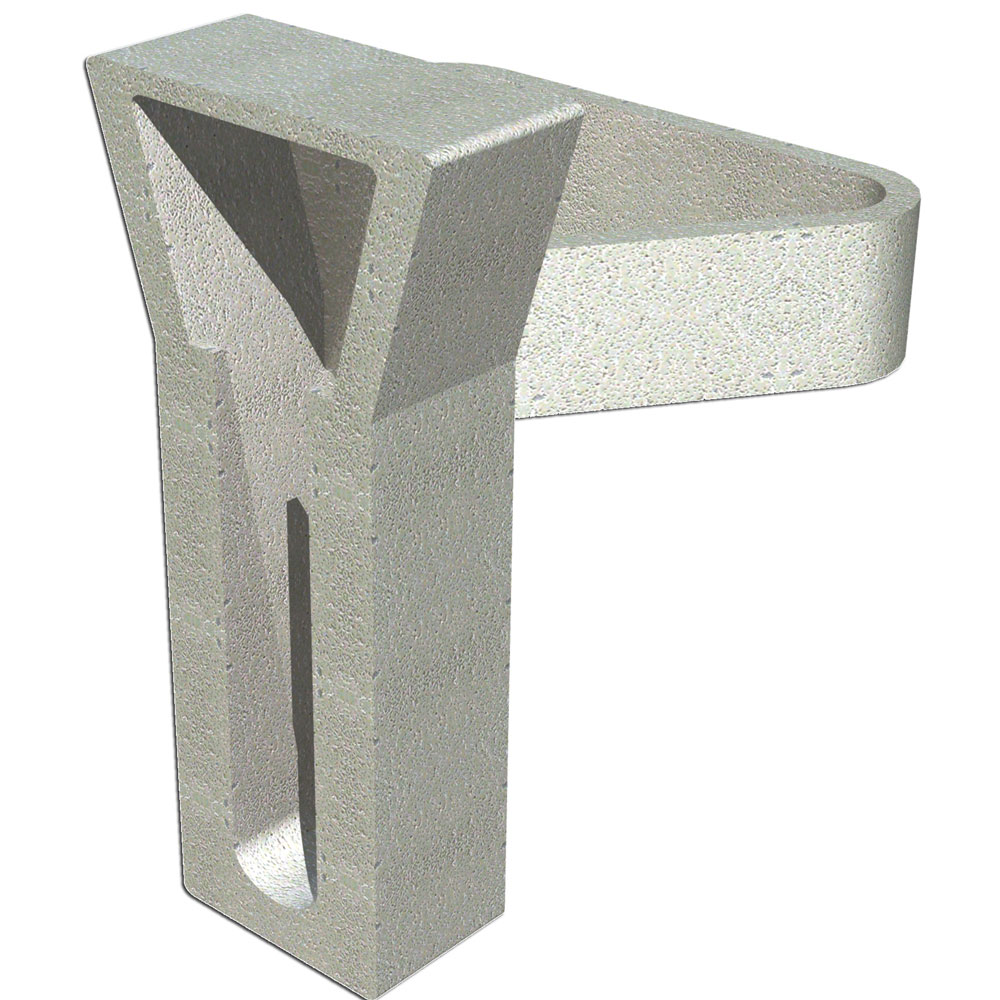

The beveled head of the askew head bolt engages the internal wedge shape of H&B concrete inserts (LW-340 or HW-340) and produces an automatic tightening action when a load is placed on it.

FINISHES

Type 304 or 316 Stainless Steel
Hot-Dip Galvanized

DIMENSIONS

Bolt Diameters:
- 3/4”
- 5/8" (only for restoration projects, NOT for use with current H&B inserts)
Bolt Lengths: 2”, 2-1/2”, 3” or 4”

Askew Head Bolt Performance Data: Carbon Steel

Carbon Steel	60,000 psi minimum Tensile Strength
Stainless Steel	70,000 psi minimum Tensile Strength

Lengths

2"2 1/2"3"4"

Finishes/Materials

Type 304 - Stainless SteelType 316 - Stainless Steel (Special Order)Hot-Dip Galvanized
