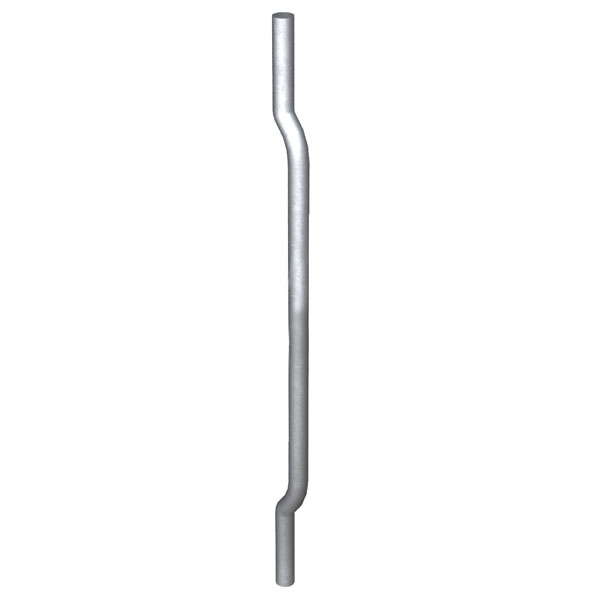

359 WELD-ON COLUMN ANCHOR
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEEDPDF Downloads
Click on the text link below to download
CADZIP Downloads

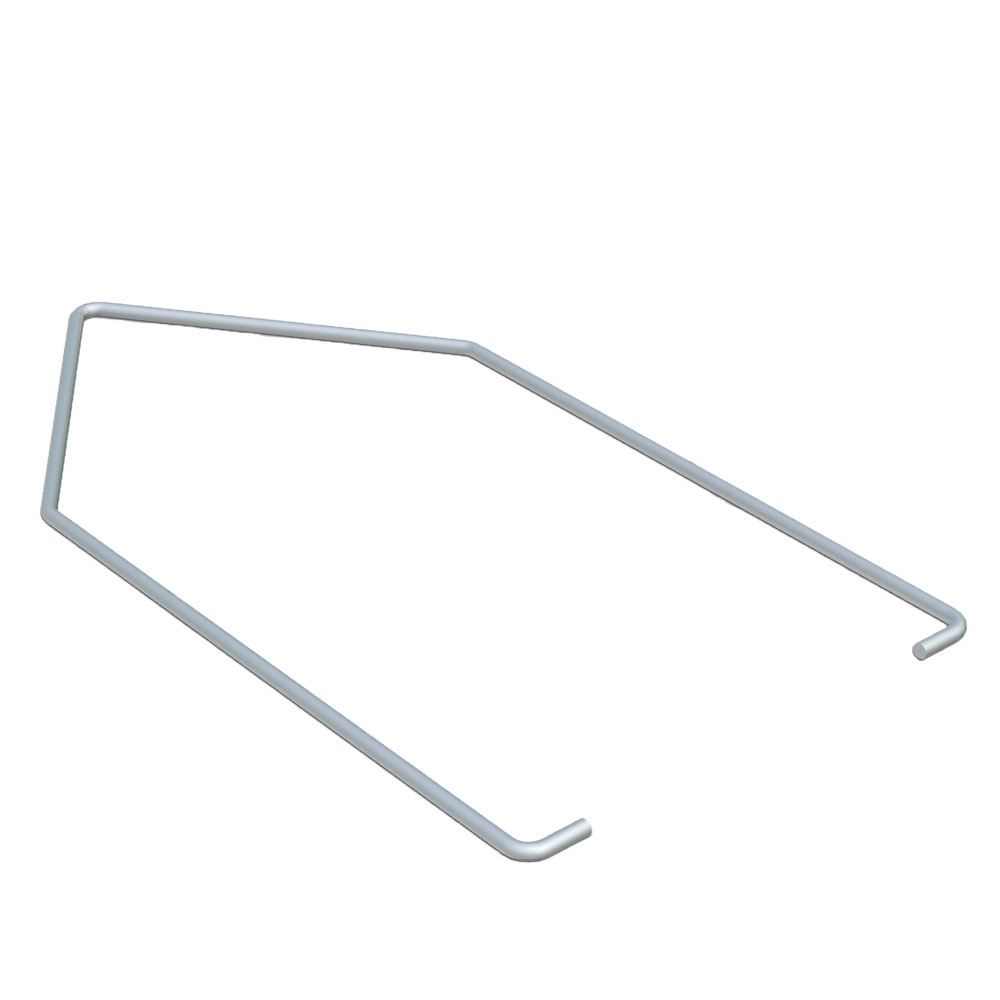

359 Weld-on Ties are used in conjunction with the Vee-Byna Tie® or the 301W Column Web Tie

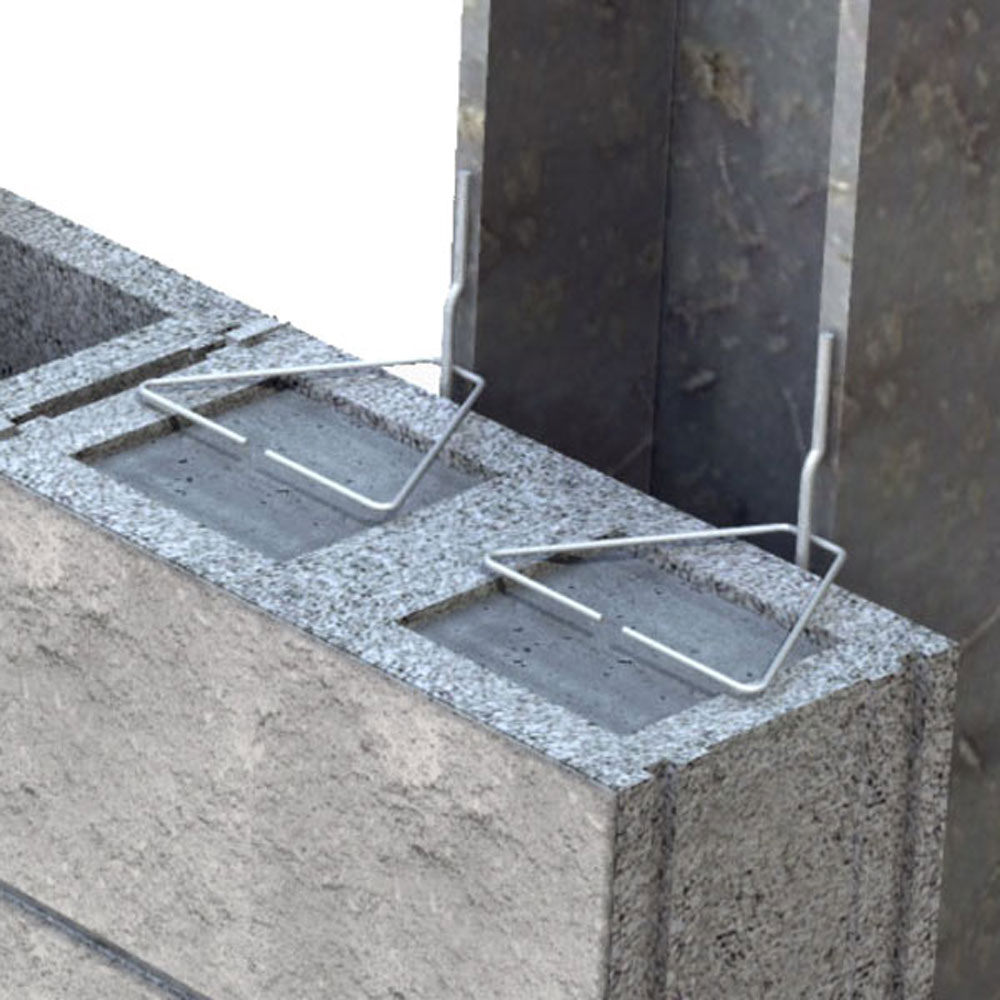

- The systems anchor masonry to the structural frame, while allowing vertical differential movements between steel and masonry
DIMENSIONS/GAUGES:
- 1/4" diameter x 8" long
AVAILABLE FINISHES:
- Mill Galvanized
- Hot Dip Galvanized
- Stainless Steel
NOTE:
- If an extended offset dimension is required for use with fireproofing, please see Product #359FP
8"
Structural Steel (Column & Beam)
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)Mill Galvanized
1/4" Ø
