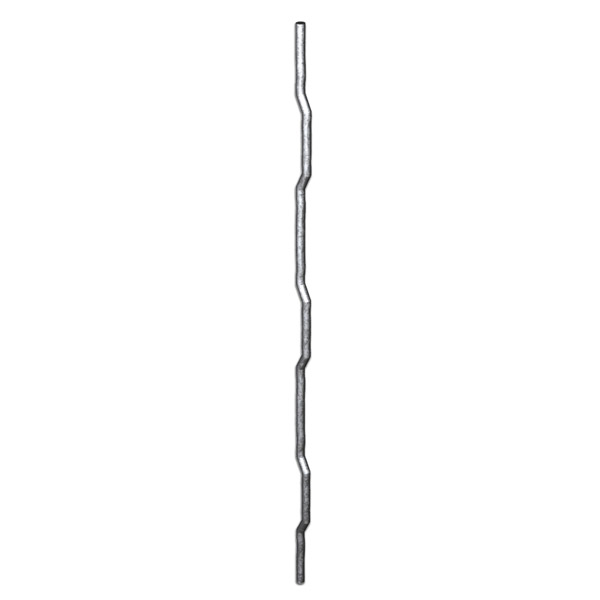

359-C - CONTINUOUS WELD-ON COLUMN ANCHOR

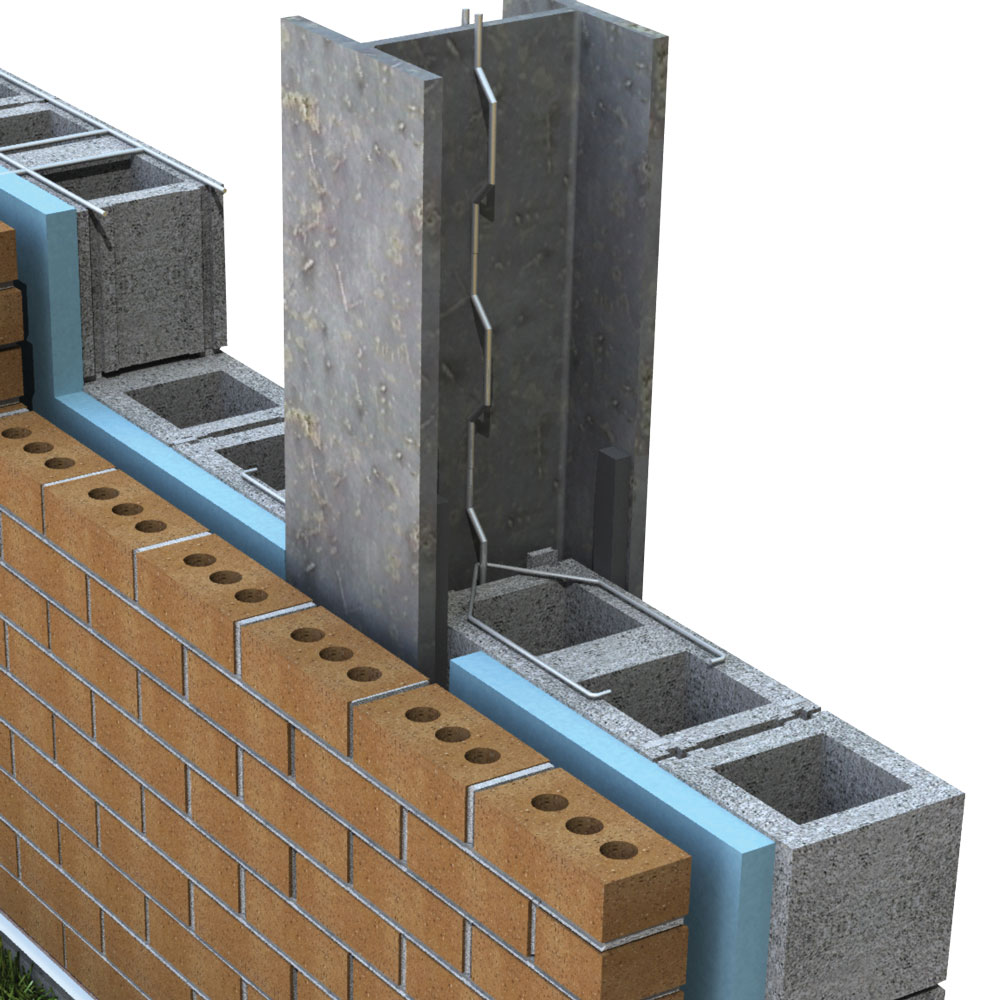

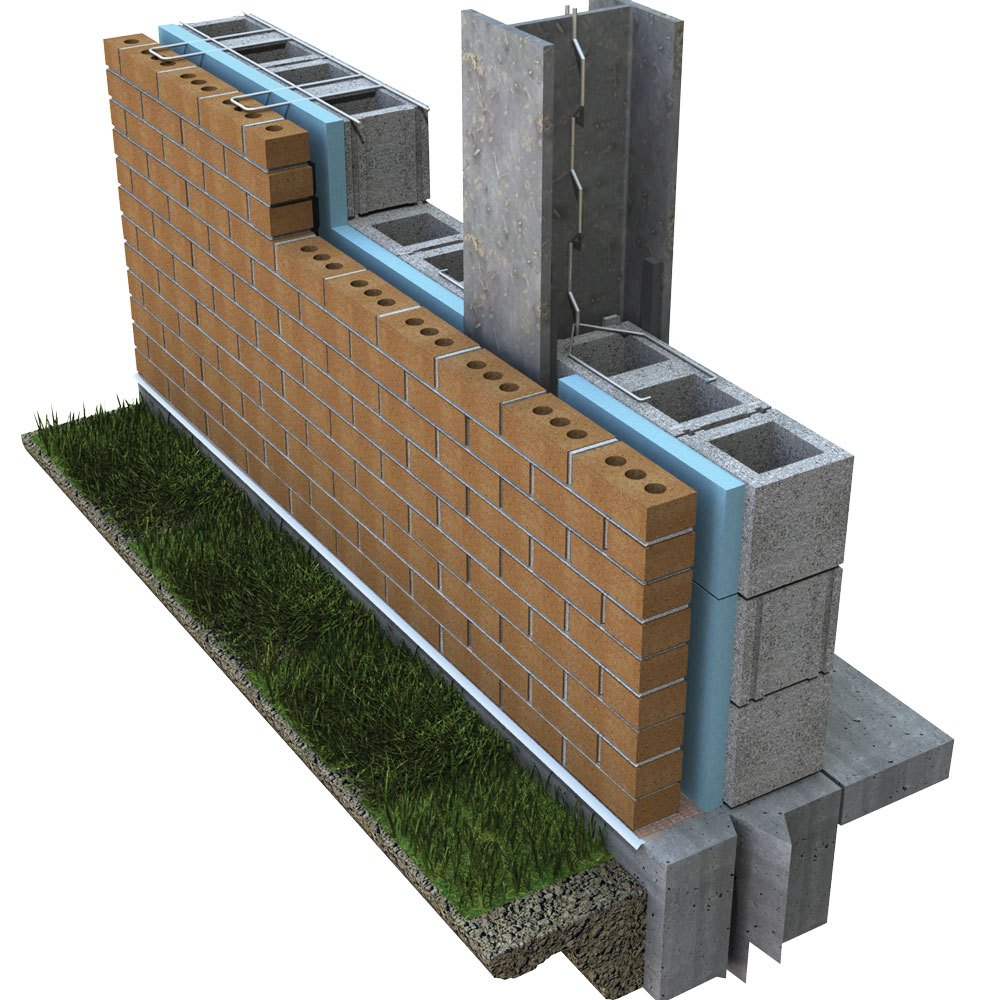

359-C - Weld-on Ties are used in conjunction with the Vee-Byna Tie® or the 301W Column Web Tie

• The systems anchor masonry to the structural frame, while allowing vertical differential movements between steel and masonry

DIMENSIONS/GAUGES:

• 1/4" diameter x 8" long
• Continuous 8'-0" lengths with offsets 8" o.c.

AVAILABLE FINISHES:

• Mill Galvanized
• Hot Dip Galvanized
• Stainless Steel

NOTE:

• If an extended offset dimension is required for use with fireproofing, please see Product 359FP-C
