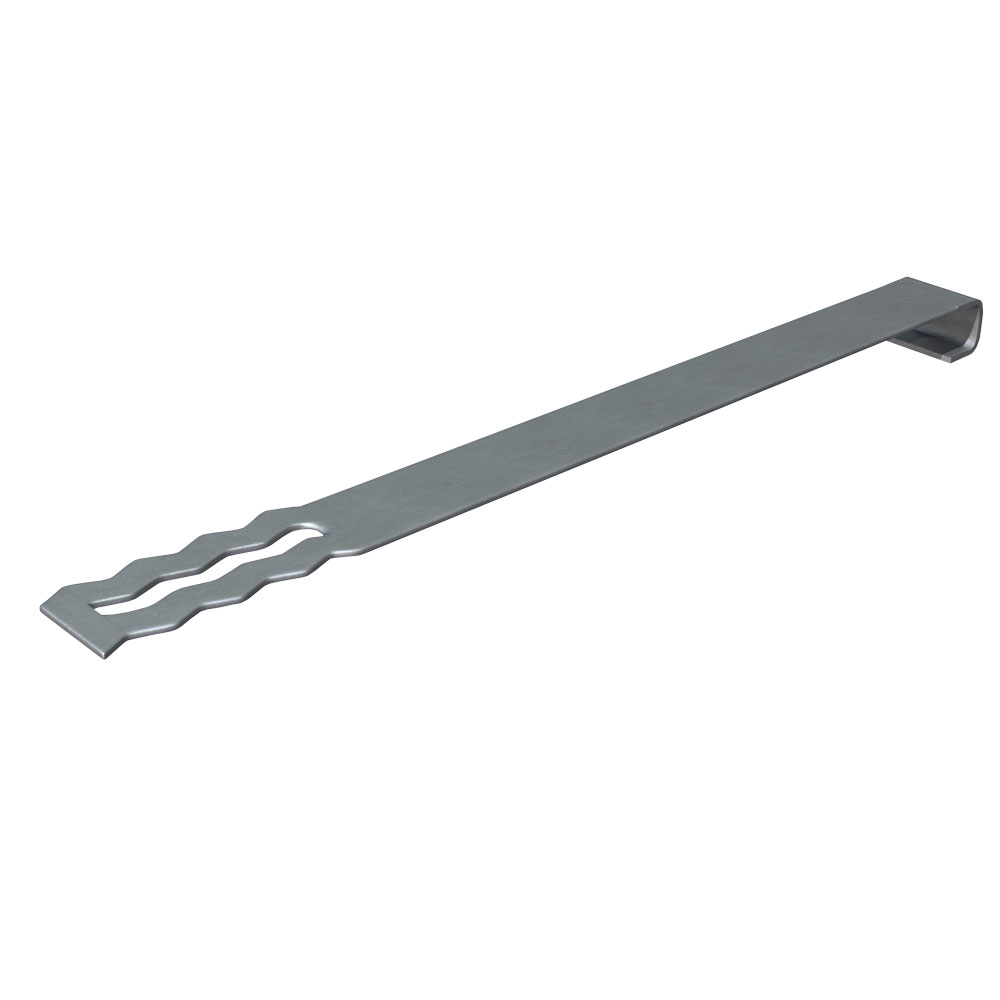

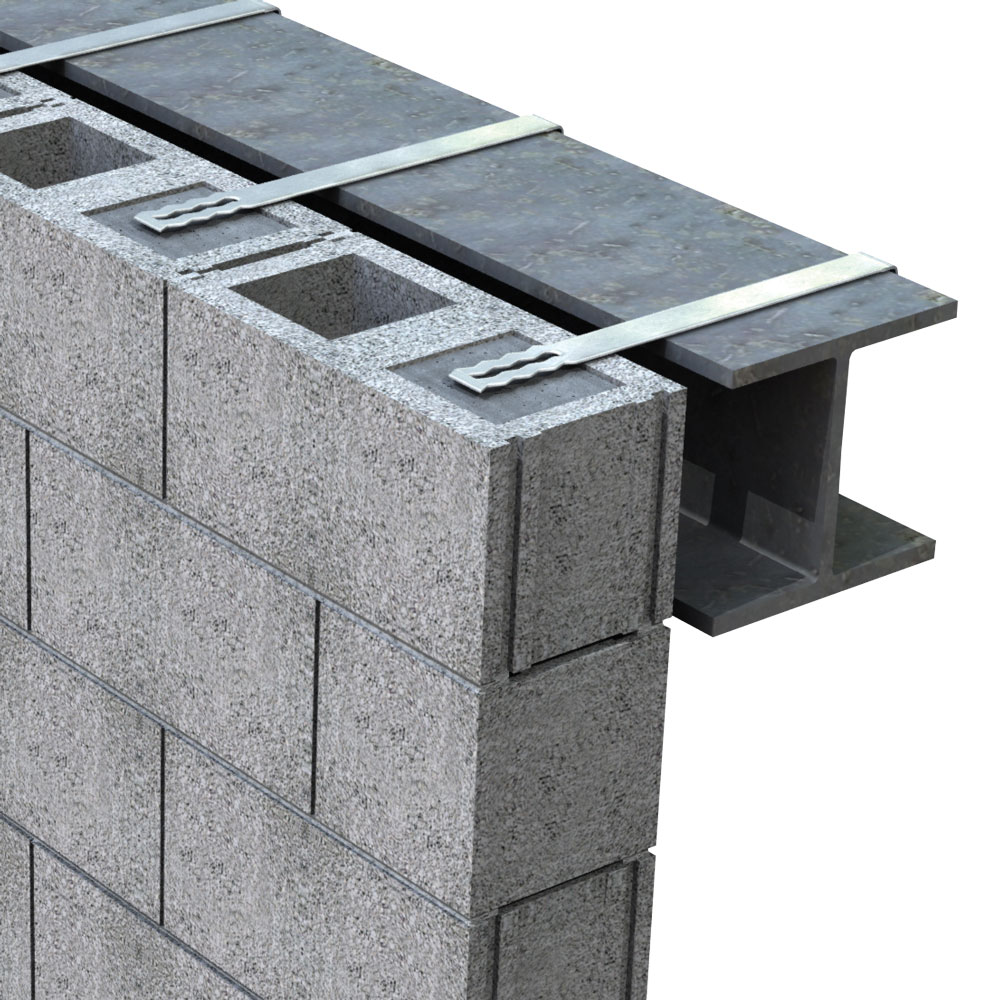

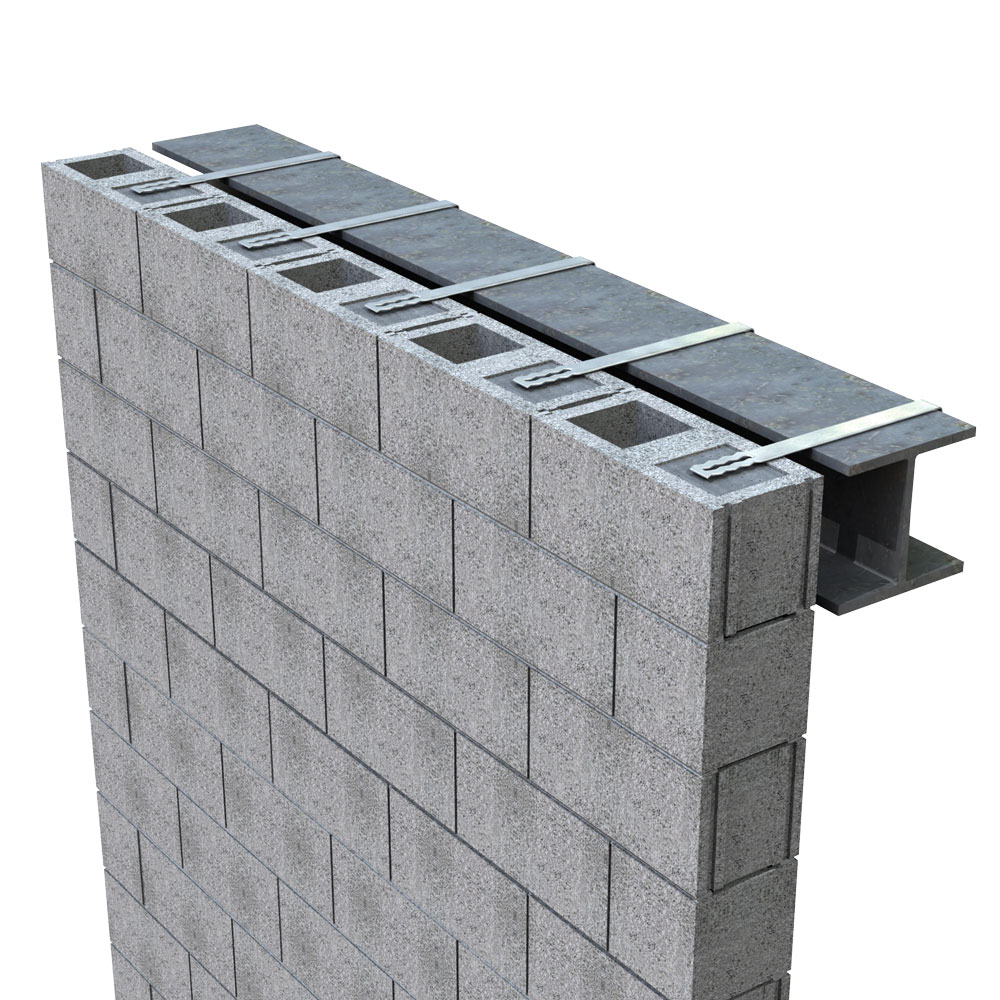

The 357 - Beam Anchor is for anchoring masonry to structural beamsDIMENSIONS/GAUGES:<ul><li>Standard size is 1 1/4" wide x 12 ga. thick x 12" long</li></ul>AVAILABLE FINISHES:<ul><li>Mill Galvanized</li><li>Hot Dip Galvanized</li><li>Stainless Steel</li></ul>U.S. Patent No. 8,904,731

357 - Beam Anchor

The 357 - Beam Anchor is for anchoring masonry to structural beamsDIMENSIONS/GAUGES:Standard size is 1 1/4" wide x 12...

Submittal

LEED Downloads

All H&B product documentation available for download on one page.

Downloads

357 - BEAM ANCHOR
