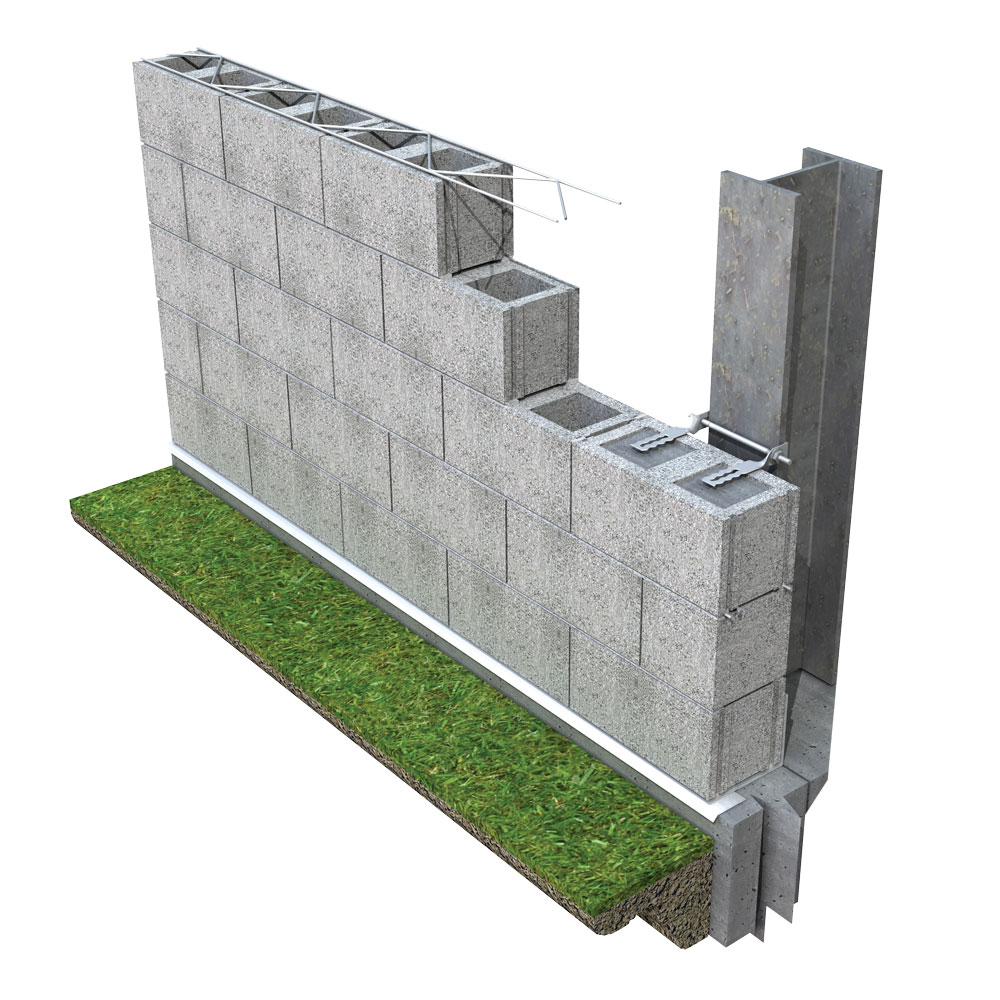

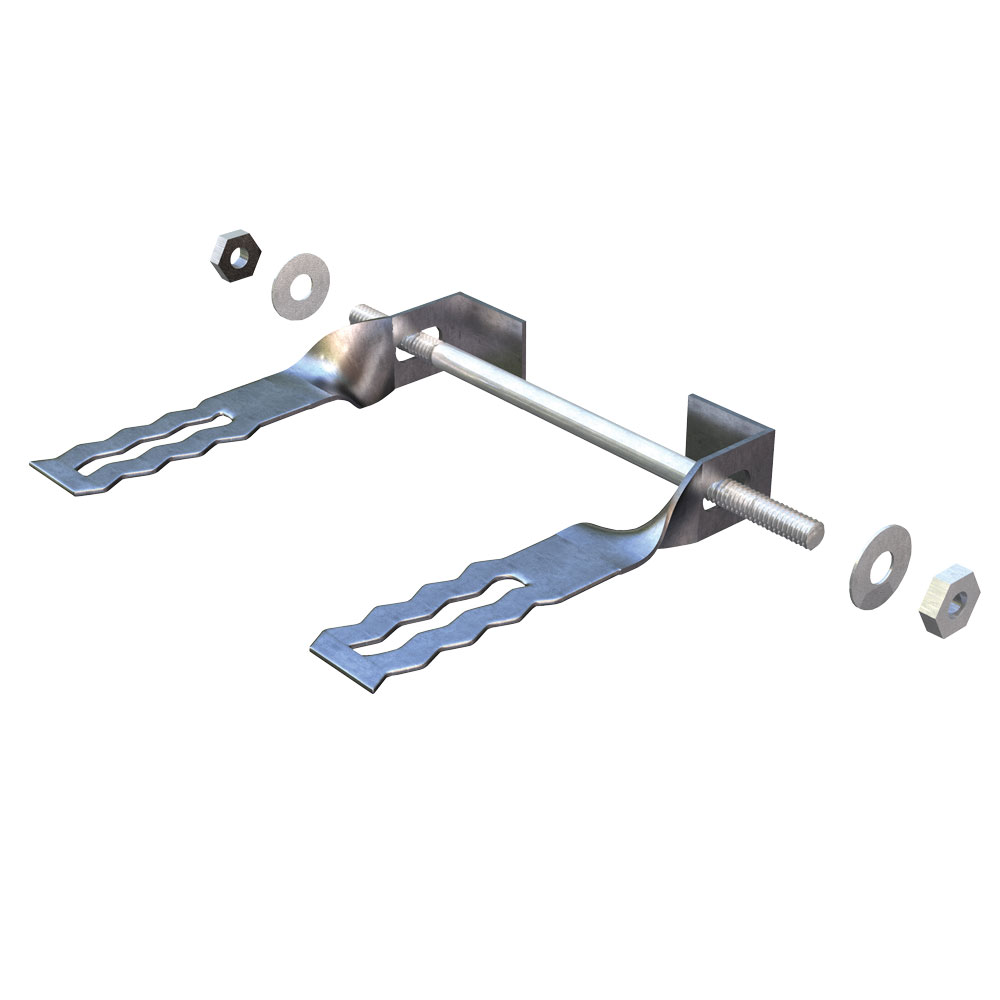

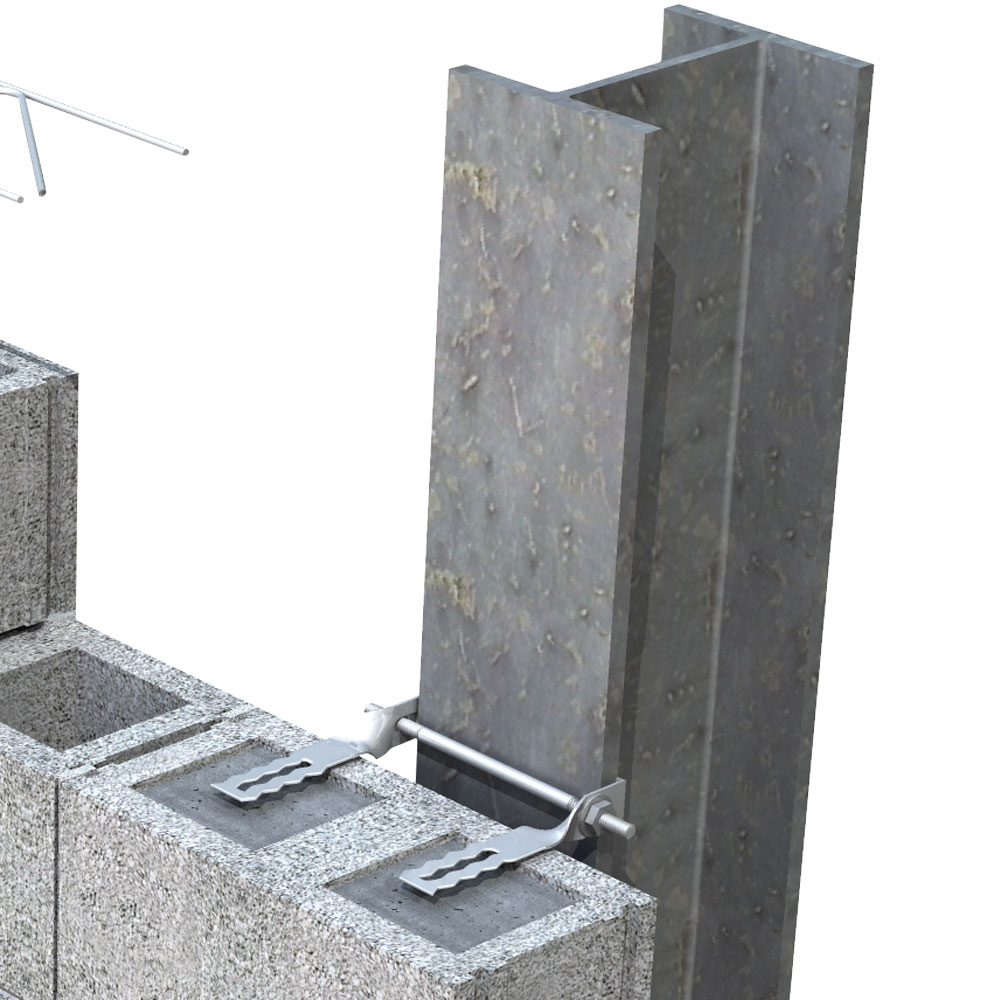

The 355L - Column Anchor anchors masonry to the building frame while restraining both positive and negative wind load actions, it has a slotted hole to accept Positive Lok BoltDIMENSIONS/GAUGES:<ul><li>1 1/4" wide x 12 ga., 3/16" or 1/4" thick</li><li>Available in any length &nbsp;</li></ul>AVAILABLE FINISHES:<ul><li>Mill Galvanized</li><li>Hot Dip Galvanized</li><li>Stainless Steel</li></ul>NOTE:<ul><li>Mill galvanized available in 12 ga. thickness only</li><li>U.S. Patent No. 8,904,731</li></ul>

355L - Column Anchor

The 355L - Column Anchor anchors masonry to the building frame while restraining both positive and negative wind load...

Submittal

LEED Downloads

All H&B product documentation available for download on one page.

Downloads

355L - COLUMN ANCHOR
