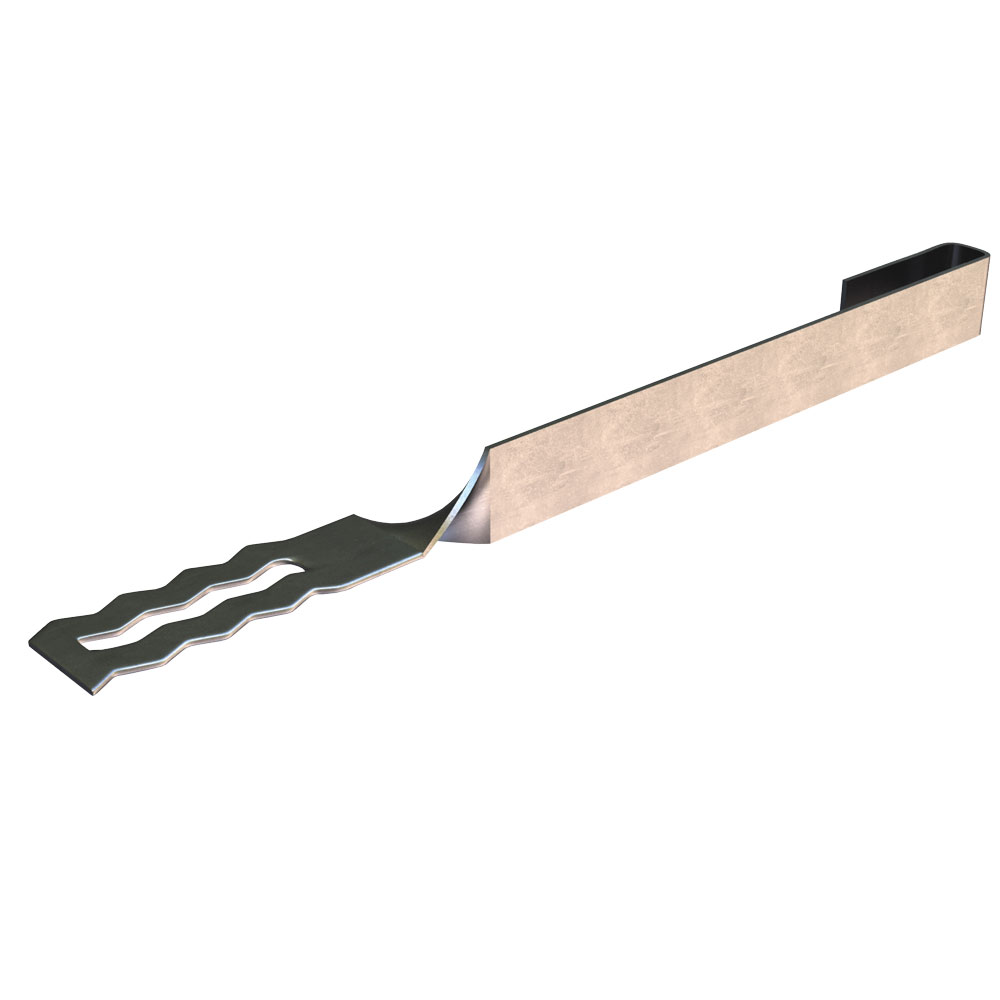

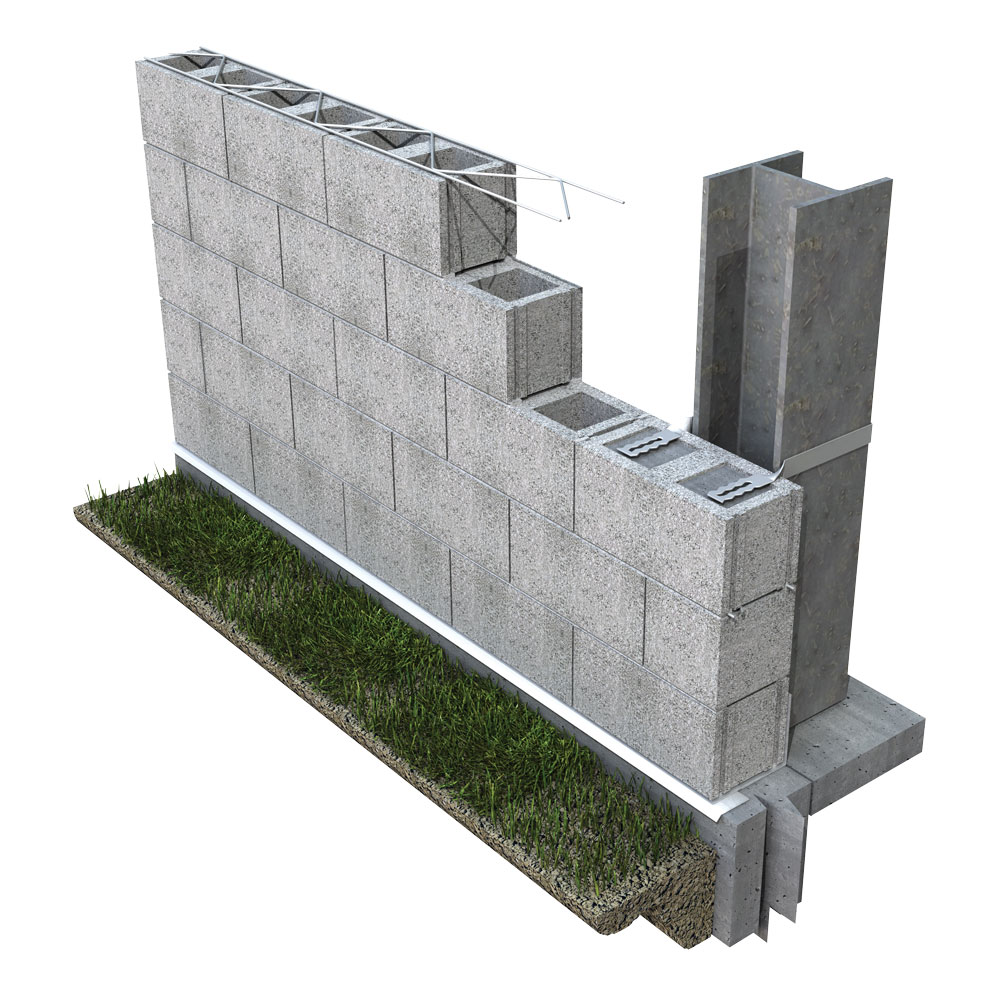

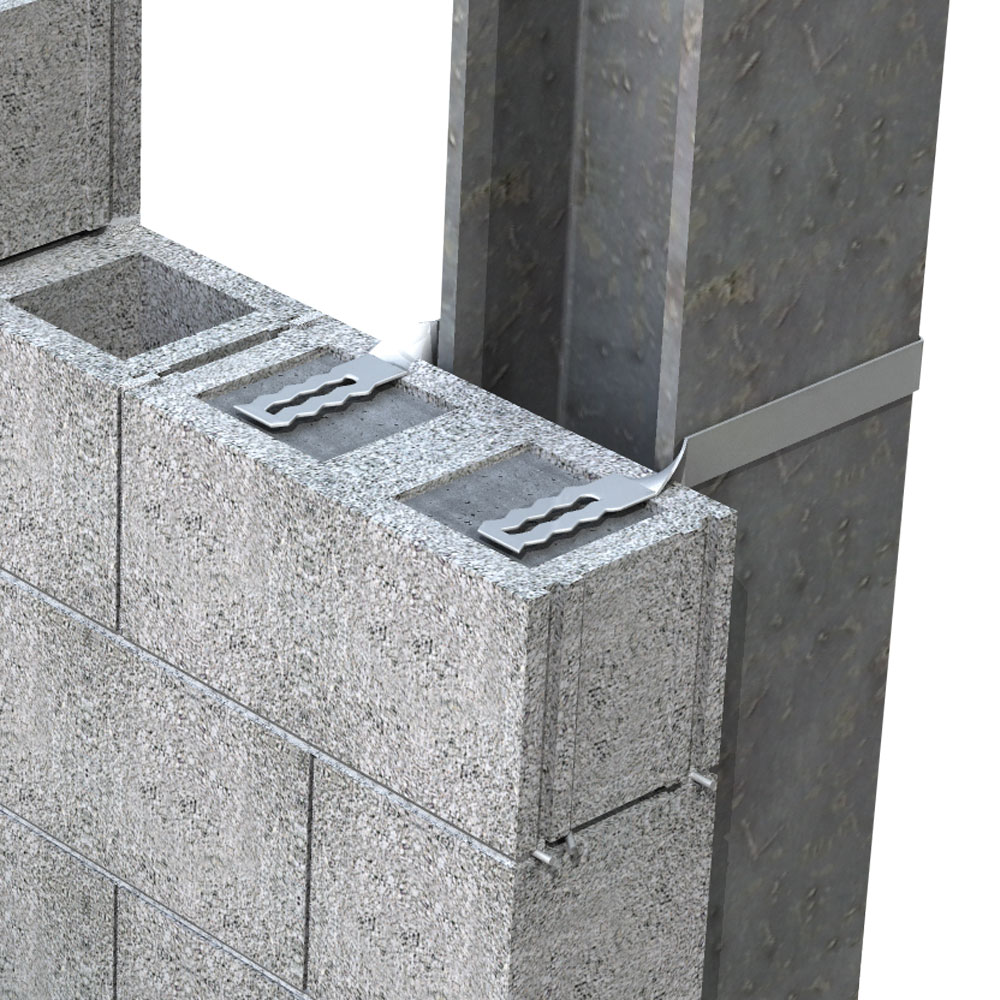

The 353 - Column Anchor is for anchoring block or brick to structural columns when masonry is perpendicular to the column flangeDIMENSIONS/GAUGES:<ul><li>Standard size is 1 1/4" wide x 12 ga. thick</li><li>Also available in other widths and gauges</li><li>State flange width and overall length of anchor when ordering</li></ul>AVAILABLE FINISHES:<ul><li>Mill Galvanized</li><li>Hot Dip Galvanized</li><li>Stainless Steel</li></ul>U.S. Patent No. 8,904,731

353 - Column Anchor

The 353 - Column Anchor is for anchoring block or brick to structural columns when masonry is perpendicular to the...

Submittal

LEED Downloads

All H&B product documentation available for download on one page.

Downloads

353 - COLUMN ANCHOR
