351 - WIRE COLUMN TIE

351 - Wire Column Tie-2
351 - Wire Column Tie-0
351 - Wire Column Tie-1
351 - Wire Column Tie-2
351 - Wire Column Tie-0
351 - Wire Column Tie-0
351 - Wire Column Tie-1
351 - Wire Column Tie-2
DOCUMENTS & DOWNLOADS
Submittal SheetsSubmittal SheetsClick on the text link below to download

Submittal SheetsPDF Downloads

SafetydataSafetydataClick on the text link below to download

Safety Data SheetsPDF Downloads

CadCadClick on the text link below to download

CADZIP Downloads

GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

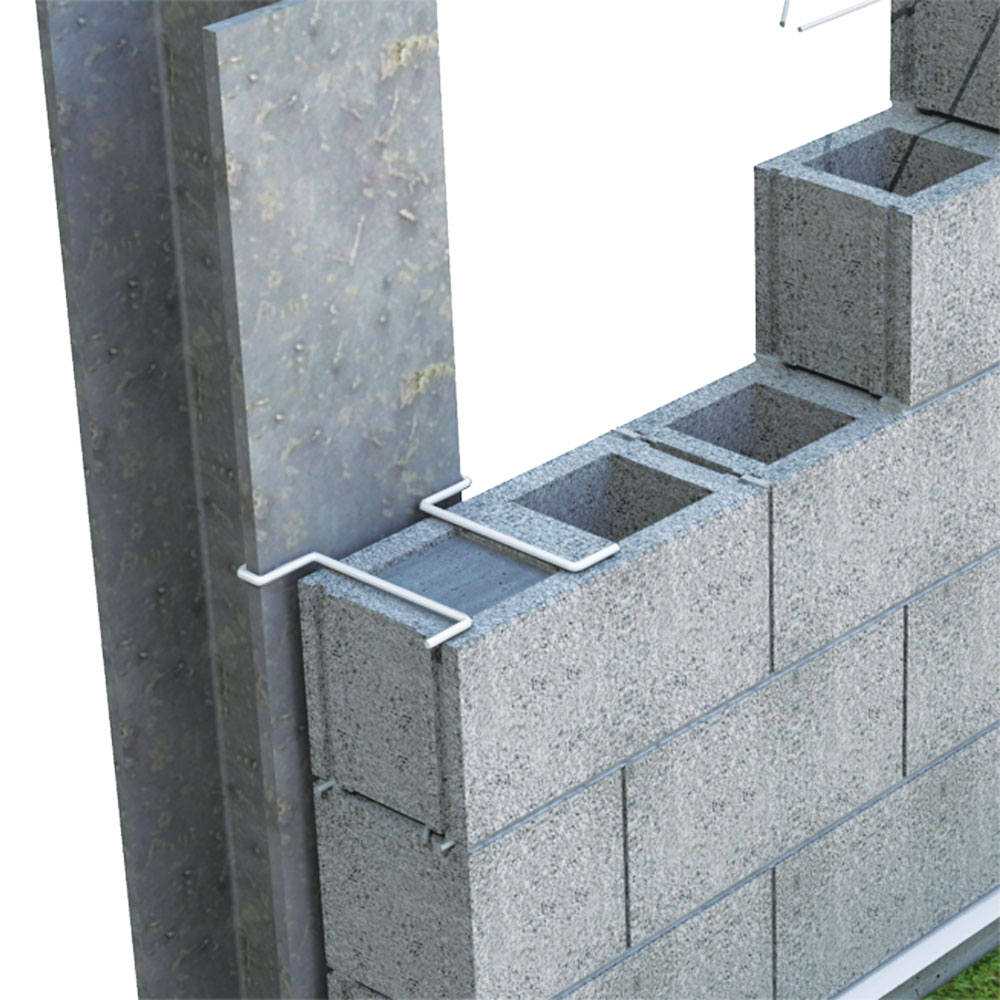

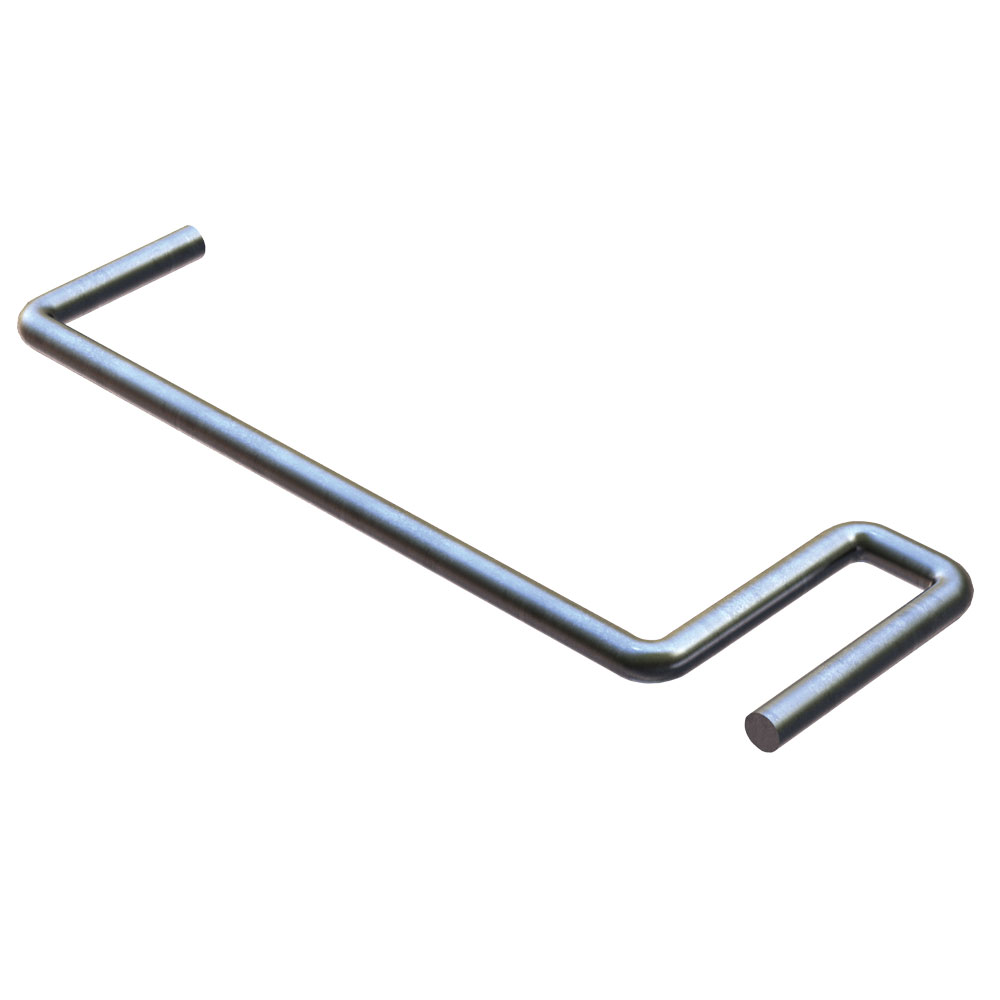

The 351 - Wire Column Tie is for anchoring masonry to structural column when masonry is parallel to column flange.

DIMENSIONS/GAUGES:

  • 3/16" or 1/4" diameter
  • 3", 5", 7" or 9" long (Custom lengths also available)
  • 2" Bend and 2 1/2" Hook with 1/2" opening standard.

AVAILABLE FINISHES:

  • Mill Galvanized
  • Hot Dip Galvanized
  • Stainless Steel

Lengths

3"4"5"7"9"CUSTOM

Backup Type

Structural Steel (Column & Beam)

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Wire Diameter

3/16" Ø1/4" Ø
RELATED PRODUCTS
Slider Arrow LeftSlider Arrow Left
Slider Arrow RightSlider Arrow Right

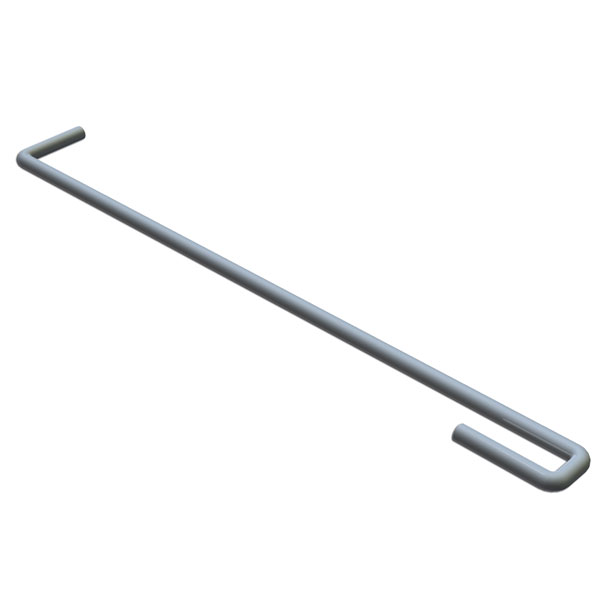

352 - Wire Column Tie352 - Wire Column Tie

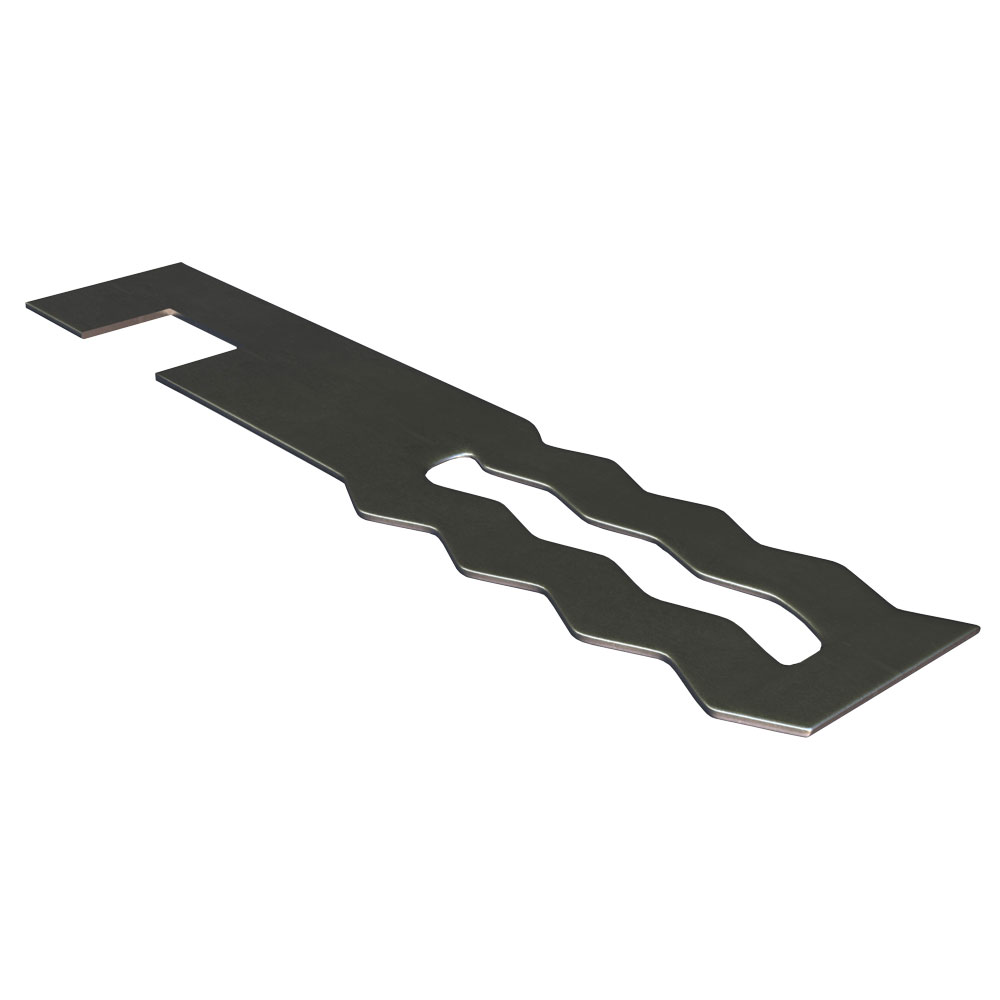

354 - Notched Column Anchor (Corrugated Type)354 - Notched Column Anchor (Corrugated Type)

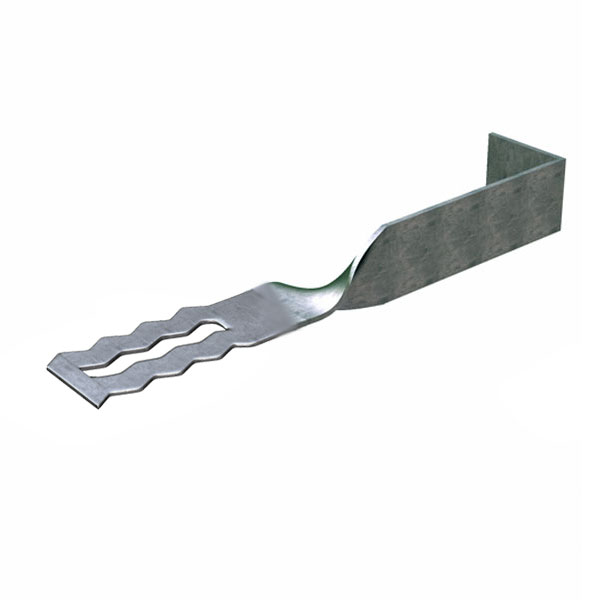

355 - Column Anchor355 - Column Anchor
