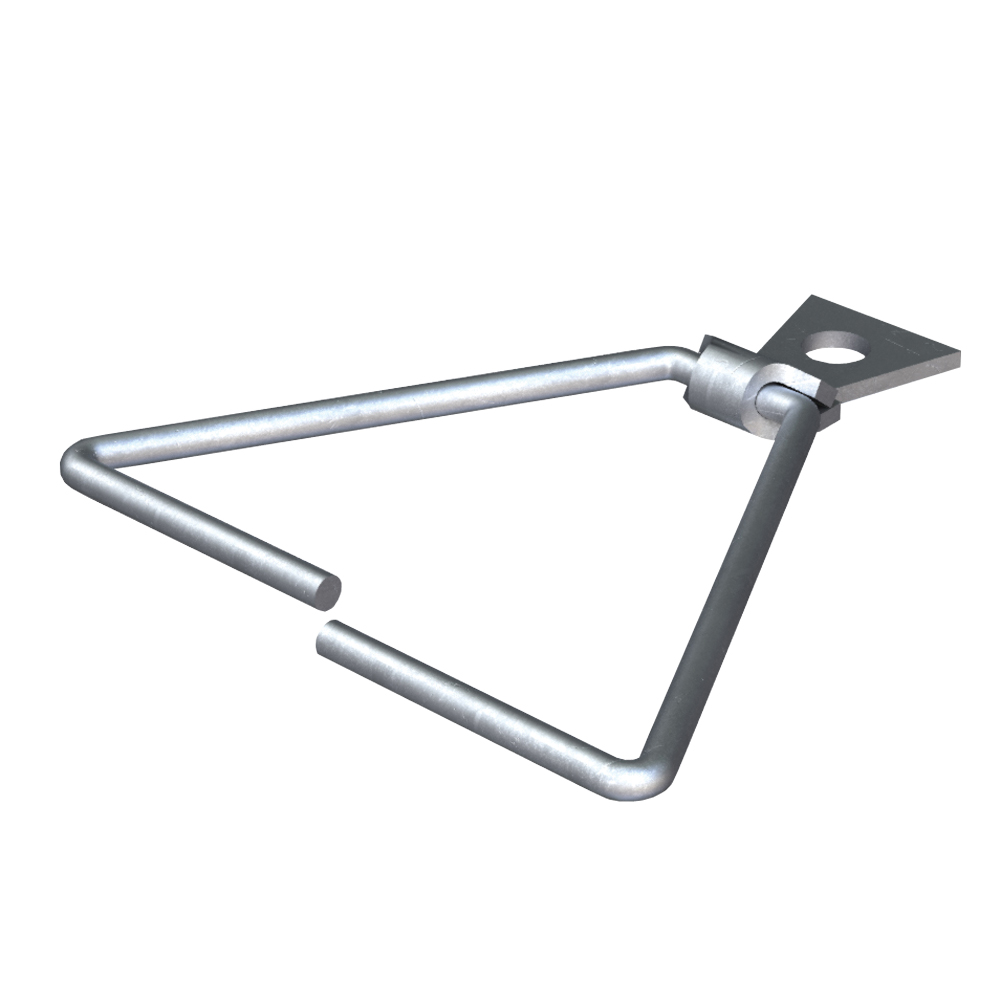

315 FLEXIBLE DOVETAIL BRICK TIE

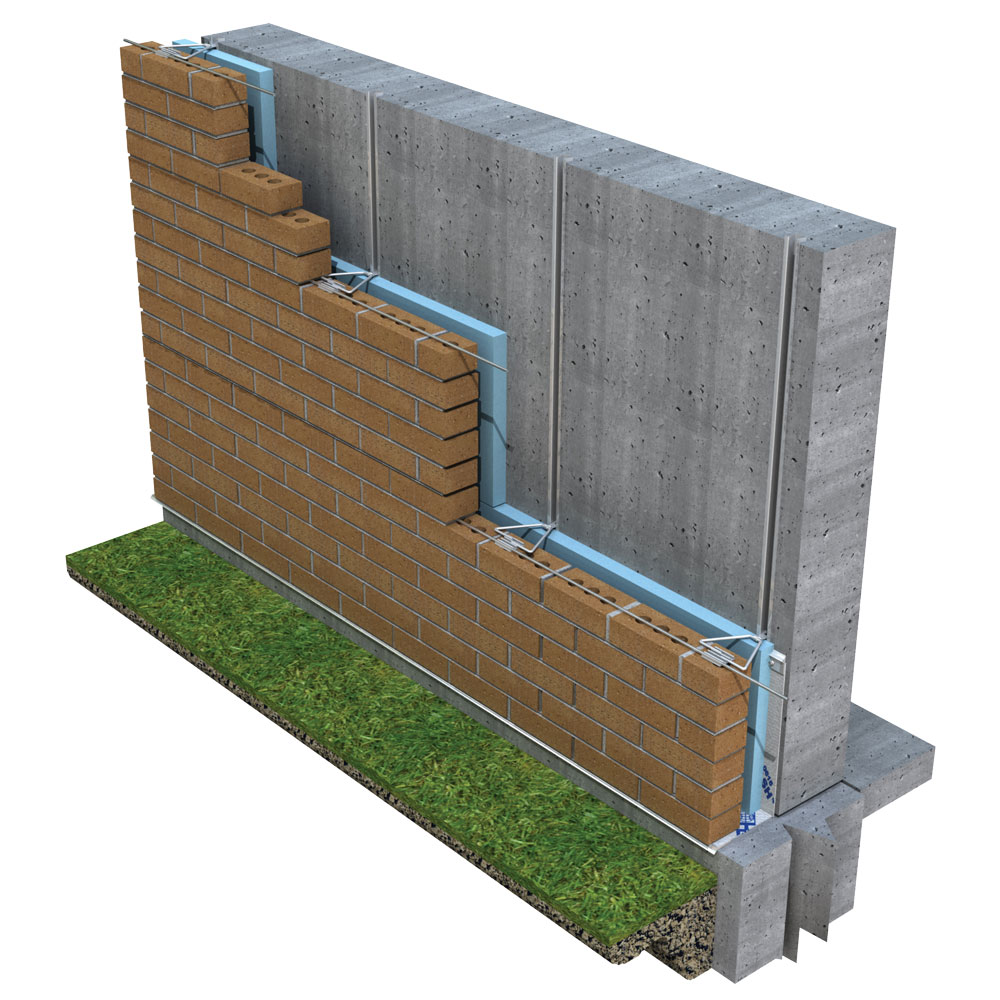

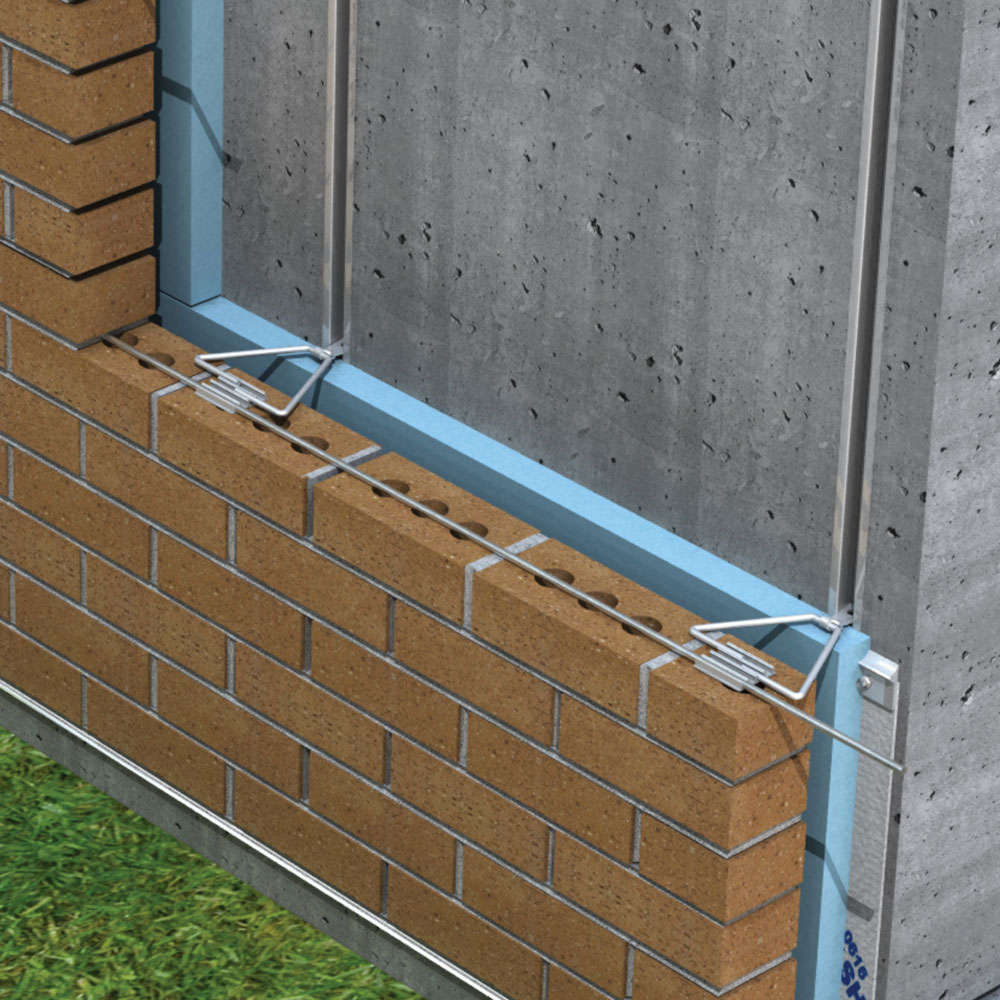

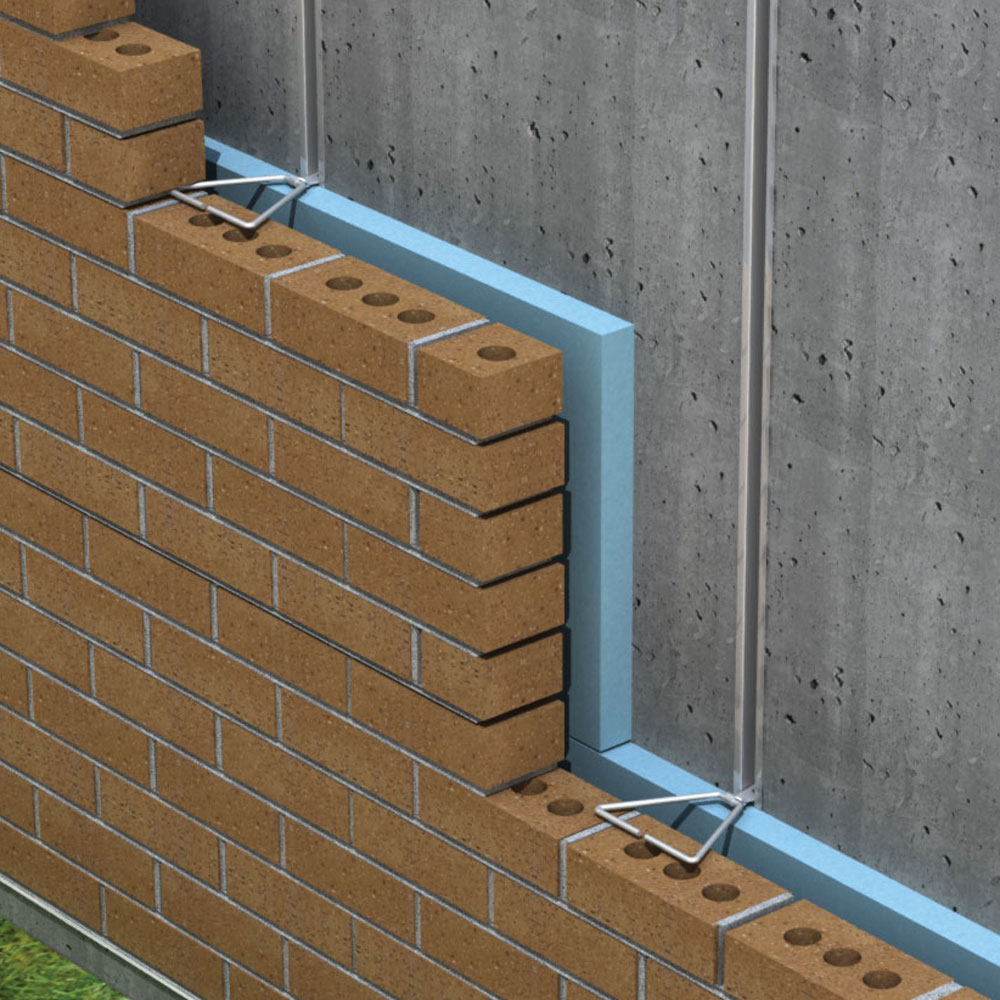

• For use with #305 Dovetail Slot or anchored directly to backup (NOTE:structural adequacy must be verified by project engineer before surface mounting)
• Permits horizontal and vertical movement of the masonry wall, while restraining tension and compression

AVAILABLE FINISHES:

• Hot Dip Galvanized
• Stainless Steel

DIMENSIONS/GAUGES:

• Dovetail Head: Standard 12 Gauge
• Dovetail Head: 9/32" dia hole
• Vee Wall Tie Diameter: Standard 3/16" or Heavyweight 1/4"
• Vee Wall Tie Length: 3", 3-1/2", 4", 4-1/2", or 5" (other lengths available)
