303 - CORRUGATED DOVETAIL BRICK TIE

Product Image

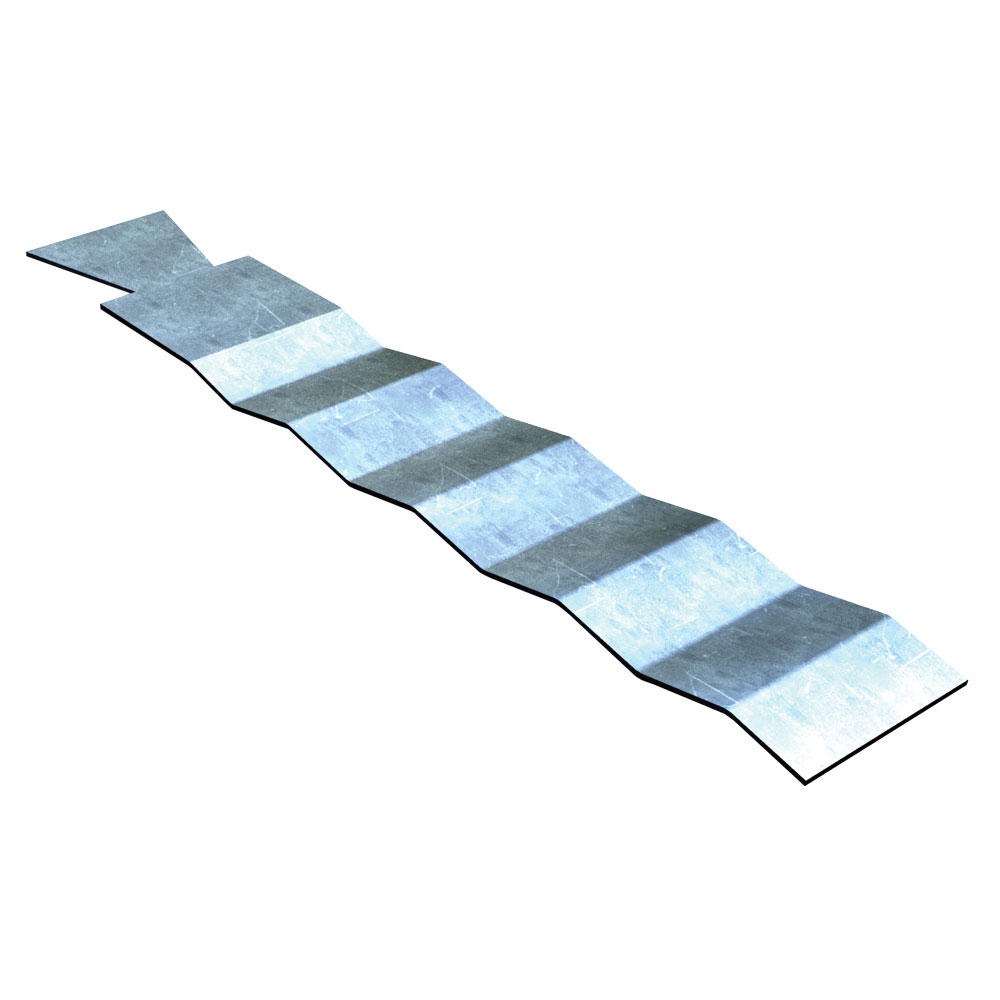

303 - Corrugated Dovetail Brick Tie
Product Image
Product Image
Product Image
Product Image
303 - Corrugated Dovetail Brick Tie
303 - Corrugated Dovetail Brick Tie
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

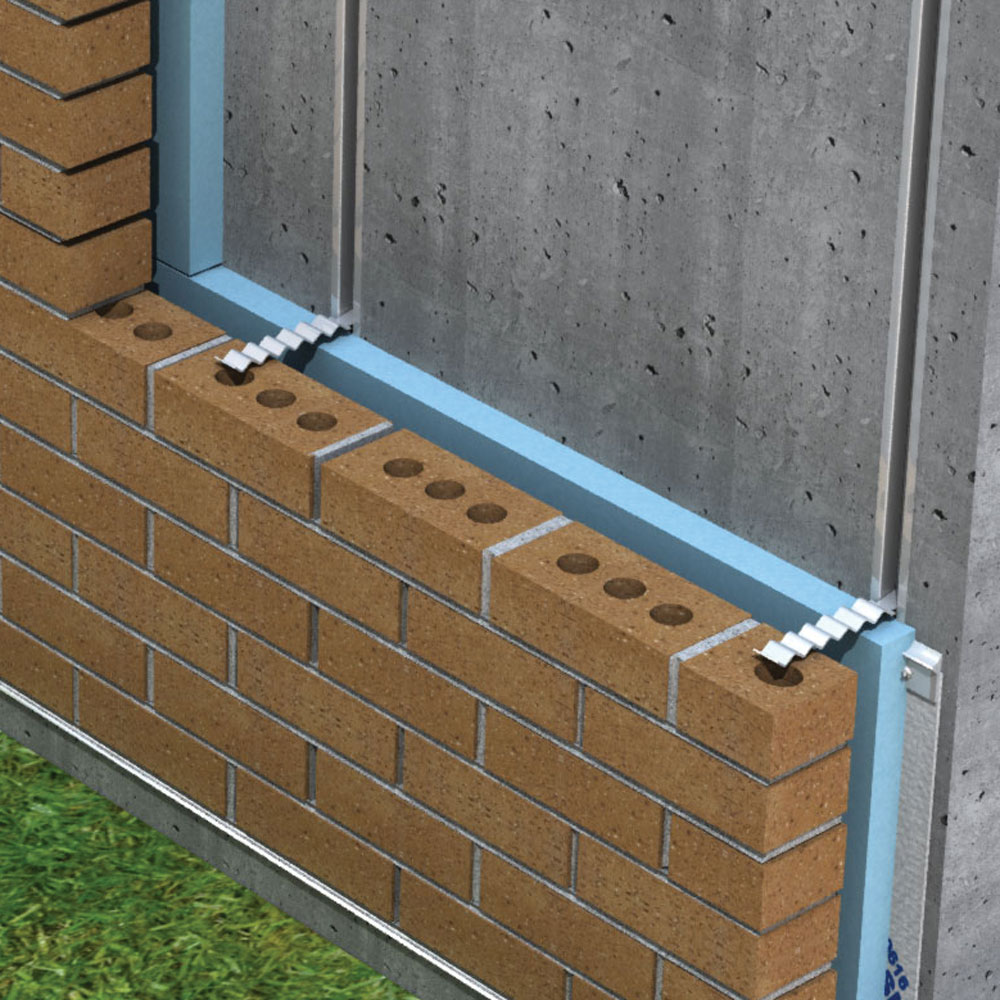

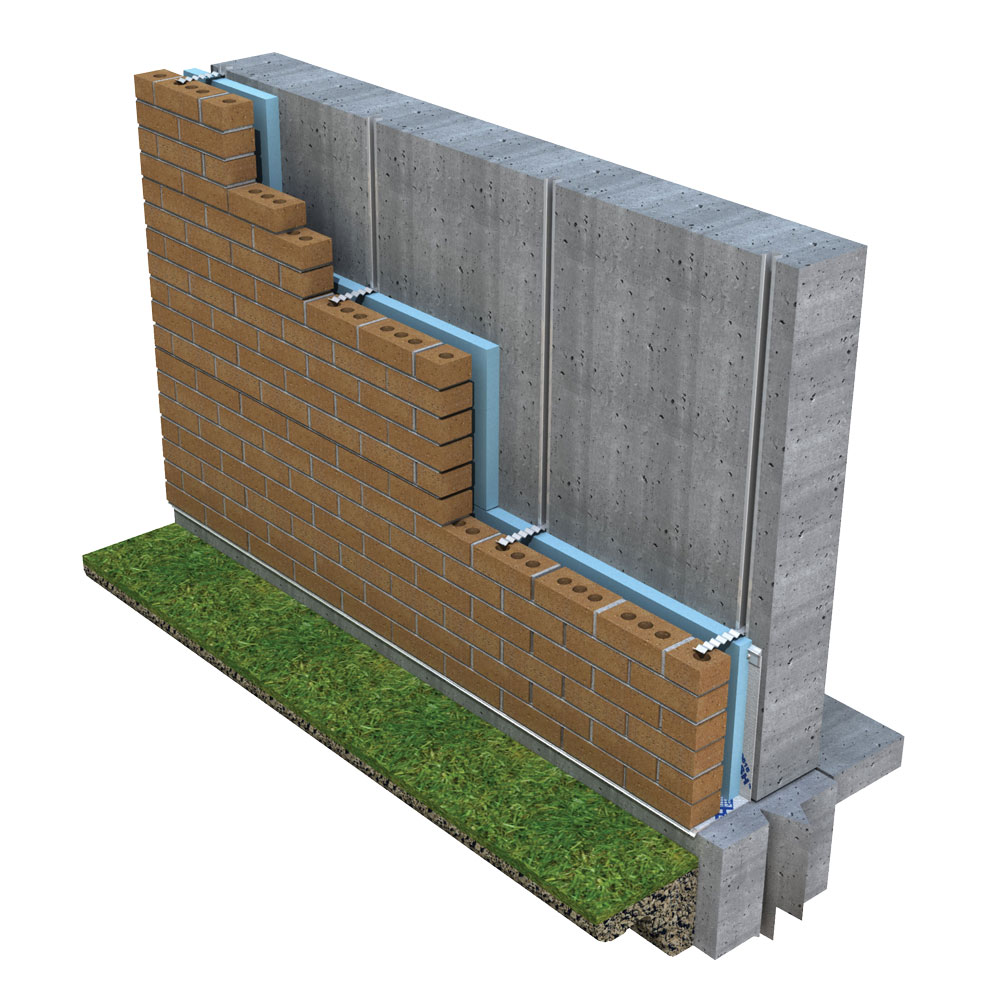

303 SV - Seismic-Notch Dovetail Anchor is modified to comply with seismic codes, which call for continuous wire in the veneer to be an integral component of the anchor system.

  • The Seismic Notch forms a seat to accommodate 9 gauge or 3/16" diameter continuous wire.
  • Head fits 305 Dovetail Slot

GAUGES:

  • 1" wide x 14 ga., 12 ga., or 11 ga. thick.

DIMENSIONS:

  • Available in any length.

NOTES:

  • Important: We are not responsible for incompatibility if ties or slots are interchanged with those of other manufacturer
  • The 303-SV has replaced the 303 Corrugated Dovetail Anchor.The 303-SV’s Seismic Notch allows mortar to flow through the plate, creating pull-out strength superior to the original 303 Corrugated Dovetail Anchor design.

Lengths

CUSTOM

Thickness/Gauge

12 gauge14 gauge16 gauge

Widths

1 1/4"

Backup Type

Concrete

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
