2-SEAL™ THERMAL CONCRETE WING NUT ANCHOR

Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

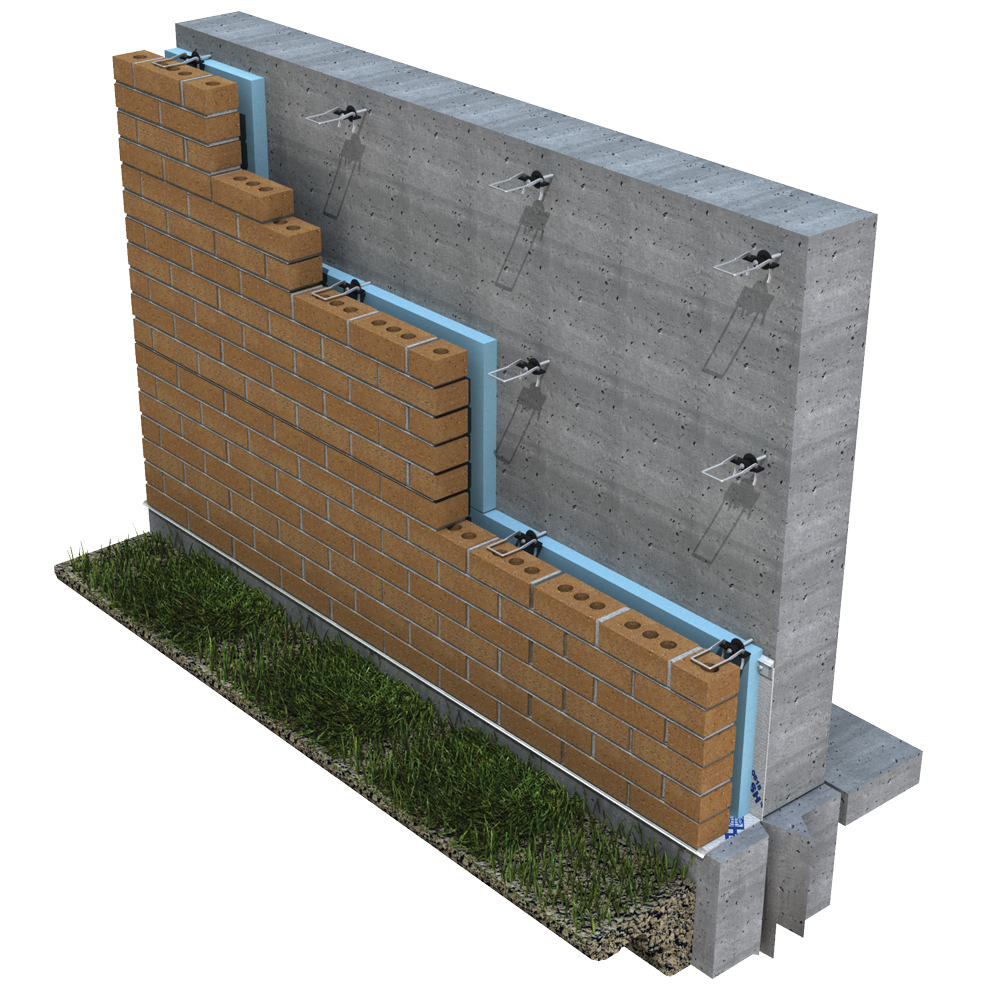

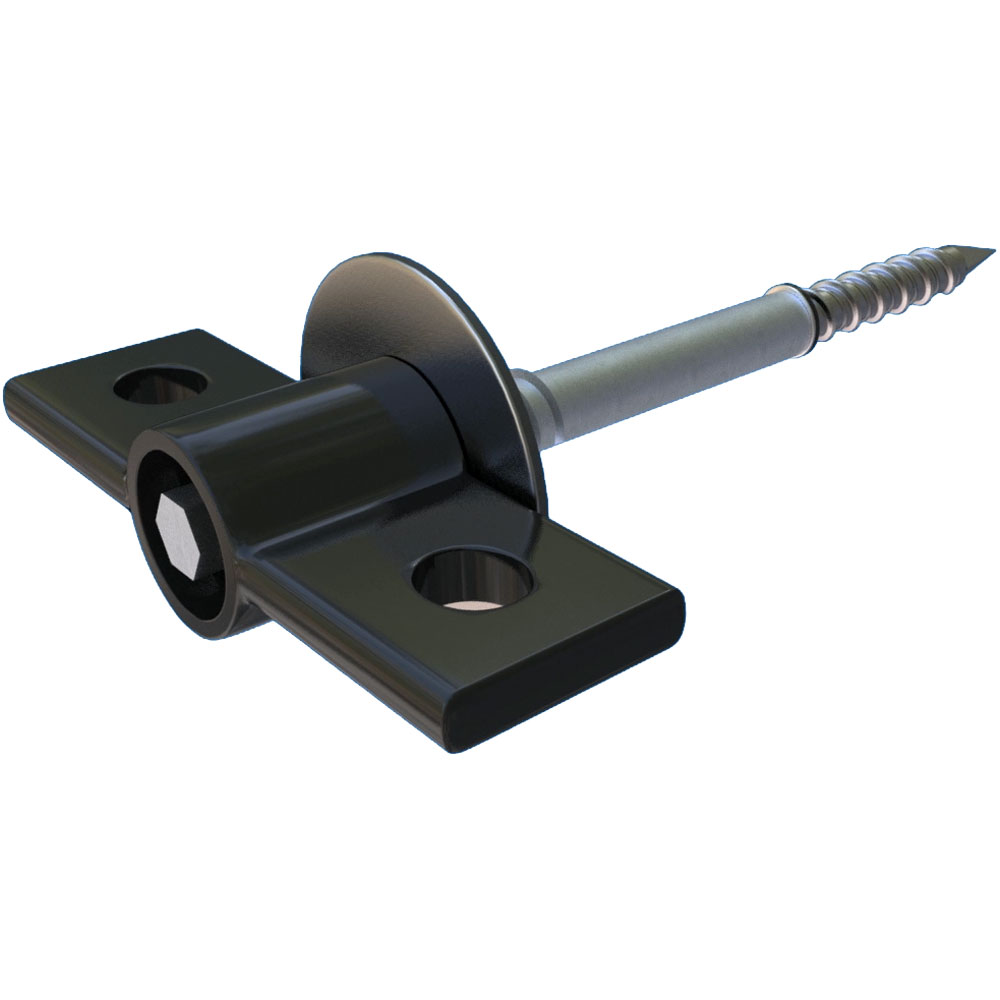

The Thermal Concrete 2-Seal™ Wing Nut is an innovative single screw veneer tie for concrete, CMU, or wood stud construction. The anchor features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.

  • The projecting Thermal Wings:
    • Are made from steel encapsulated in plastic to create a thermal break, the plastic is highly flame resistant

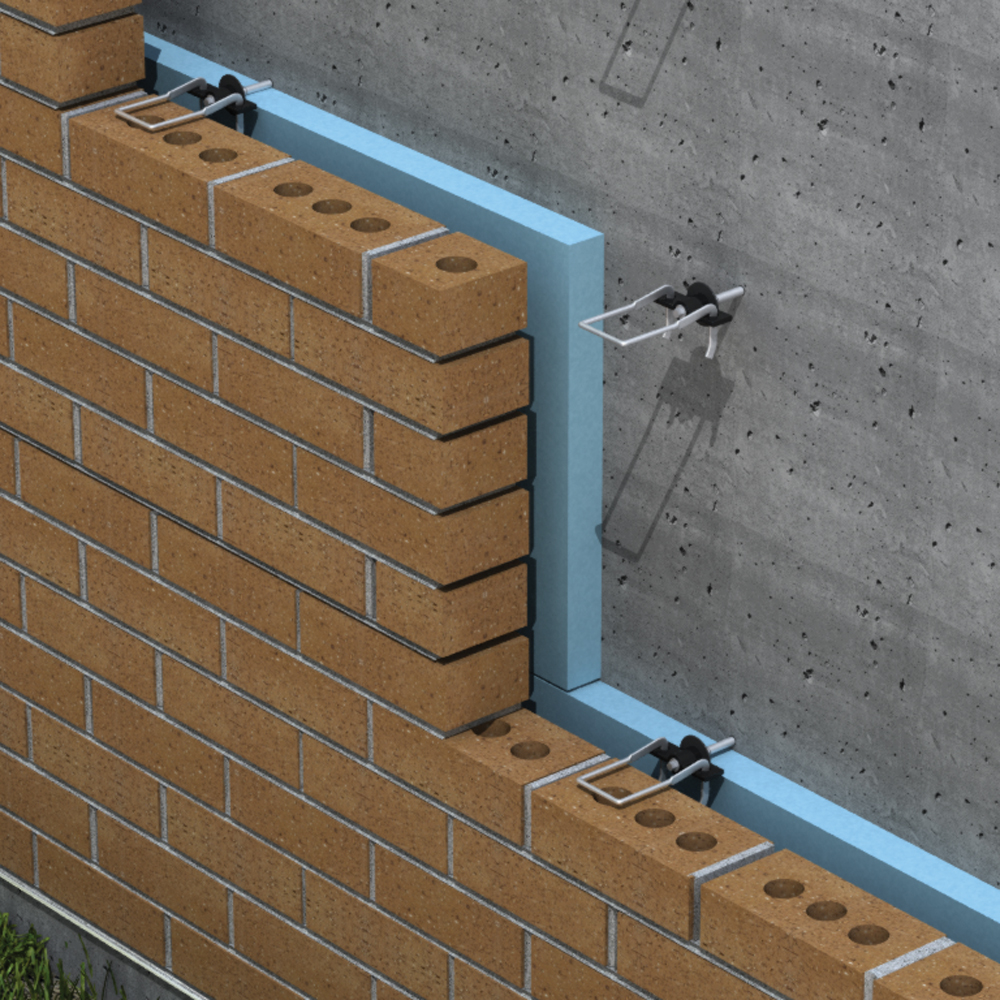

    • Accept a 2X-HOOK™ or Seismic 2X-HOOK™ and spin to easily orient pintles/hooks parallel to masonry joints
    • Up to 1/2” of inward adjustability to account for variations in wall thickness
  • H&B's Stainless Steel barrels have one-third the thermal conductivity of carbon steel barrels and one-seventh the thermal conductivity of the zinc barrels of our competitors products (refer to chart below)
Metal TypeThermal Conductivity
(W/cm K)
Stainless Steel (Type 304)0.15
AISI-SAE 1020 (Plain Carbon Steel)0.52
Zinc (Commercial)1.1

References:

  • ASM Metals Reference Book, Second Edition, American Society for Metals, Metals Park, OH, 1983.
  • Lynch, C. T., CRC Practical Handbook of Materials Science, CRC Press, Boca Raton, FL, 1989.
  • Shackelford, J. F., and Alexander, W., CRC Materials Science and Engineering Handbook, CRC Press, Boca Raton, FL, 1991
  • Made with a 5/16” hex head, install with a standard hex socket
  • Adaptable for seismic zones with the simple addition of 9 gauge or 3/16" continuous wire and a 2X-HOOK™ Seismic Pintle (SH)


The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

  • NOTE: 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
  • The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
  • 2X-Hook: U.S. Pat. No. 8,613,175 Test results available upon request.

AVAILABLE FINISHES:

  • Type 304 Stainless Steel Barrel with Polymer Coated Screw

DIMENSIONS:

  • Available in 5/8" ,1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2" and 6" sizes (Equal to thickness of insulation)

NOTES:

  • Pre-drill a 5/32" (4 mm) hole into concrete, CMU, or masonry backup to a depth of 2" (51 mm).
  • Thermal 2-Seal™ Wing Nut Anchor is available for Steel Stud Construction.
  • H&B recommends 16” x 16” spacing
  • U.S. Patent Numbers. 7,415,803

Vertical Adjustability

1 1/4"2 1/4"

Sizes

5/8"1"1 1/2"2"2 1/2"3"3 1/2"4"4 1/2"5"6" (Special Order)5 1/2" (Special Order)

Backup Type

BrickConcreteCMUWood Stud

Finishes/Materials

Type 304 - Stainless Steel

Minimum Air Space Requirement

1"
