PRODUCT DESCRIPTION

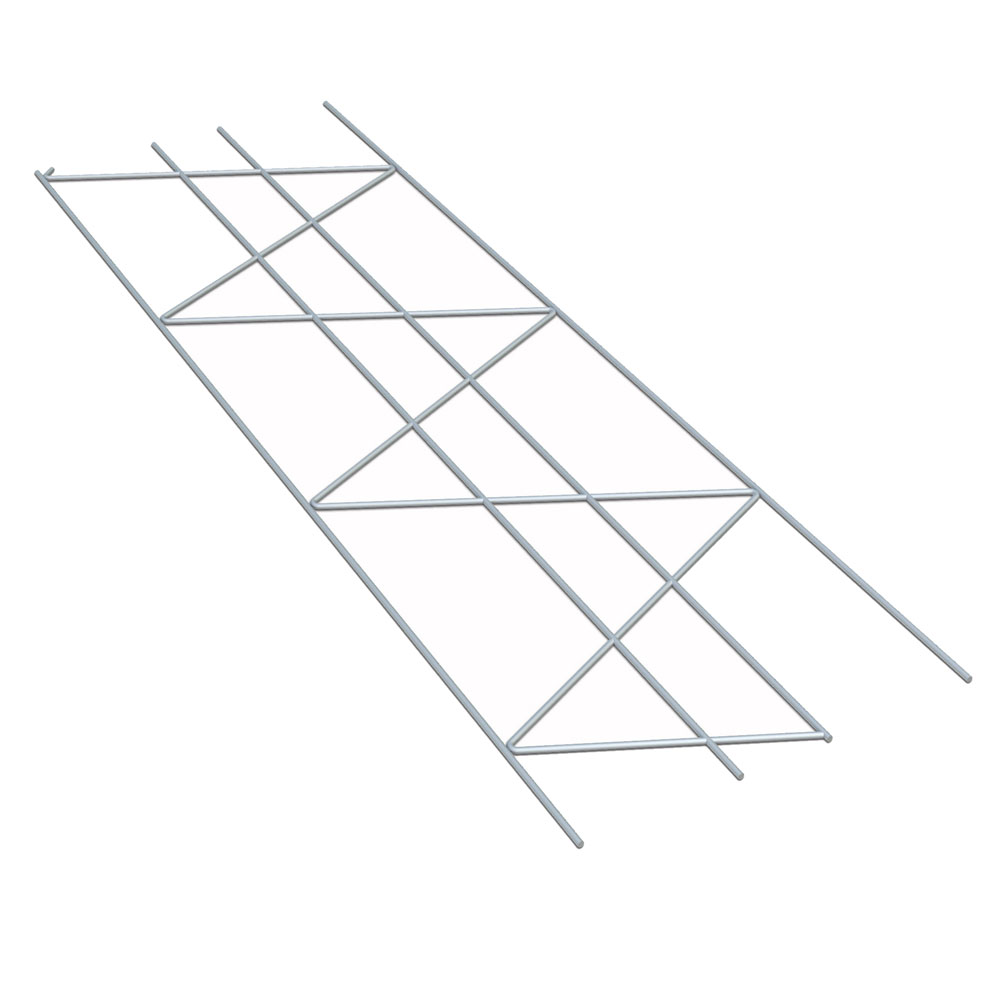

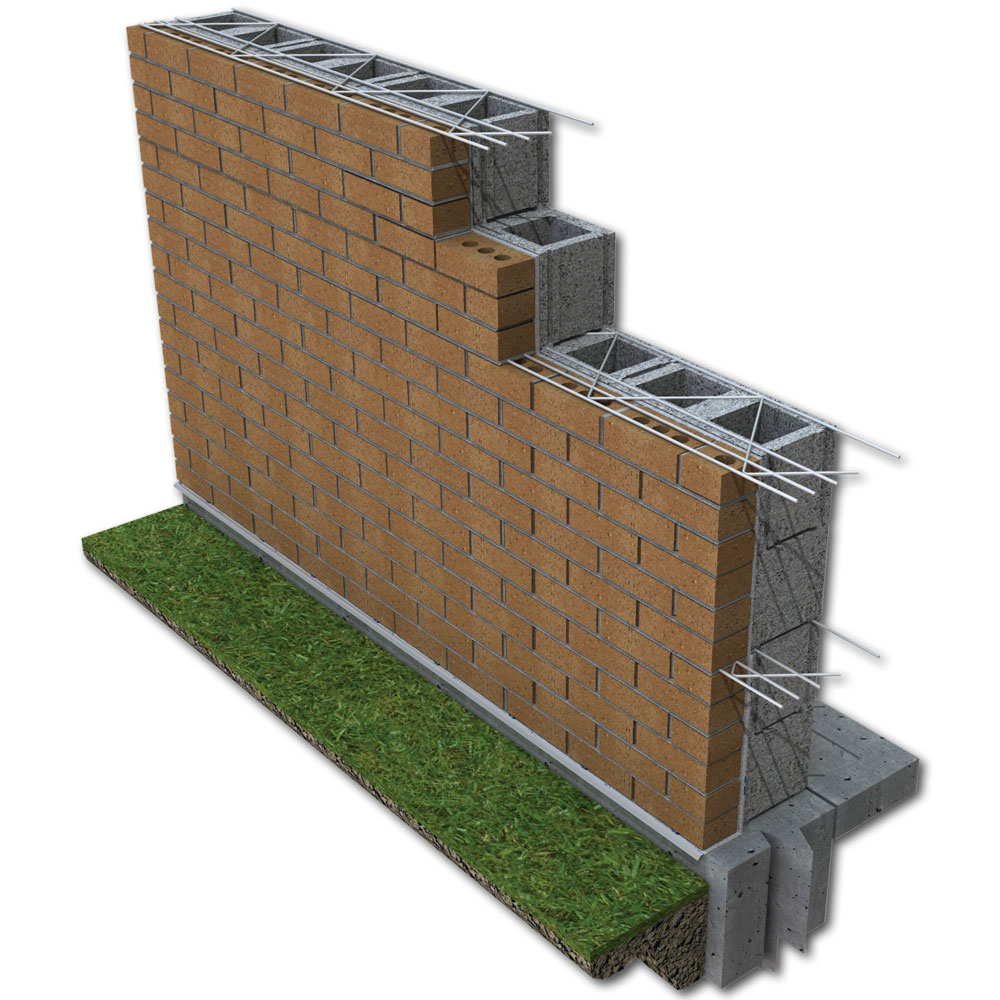

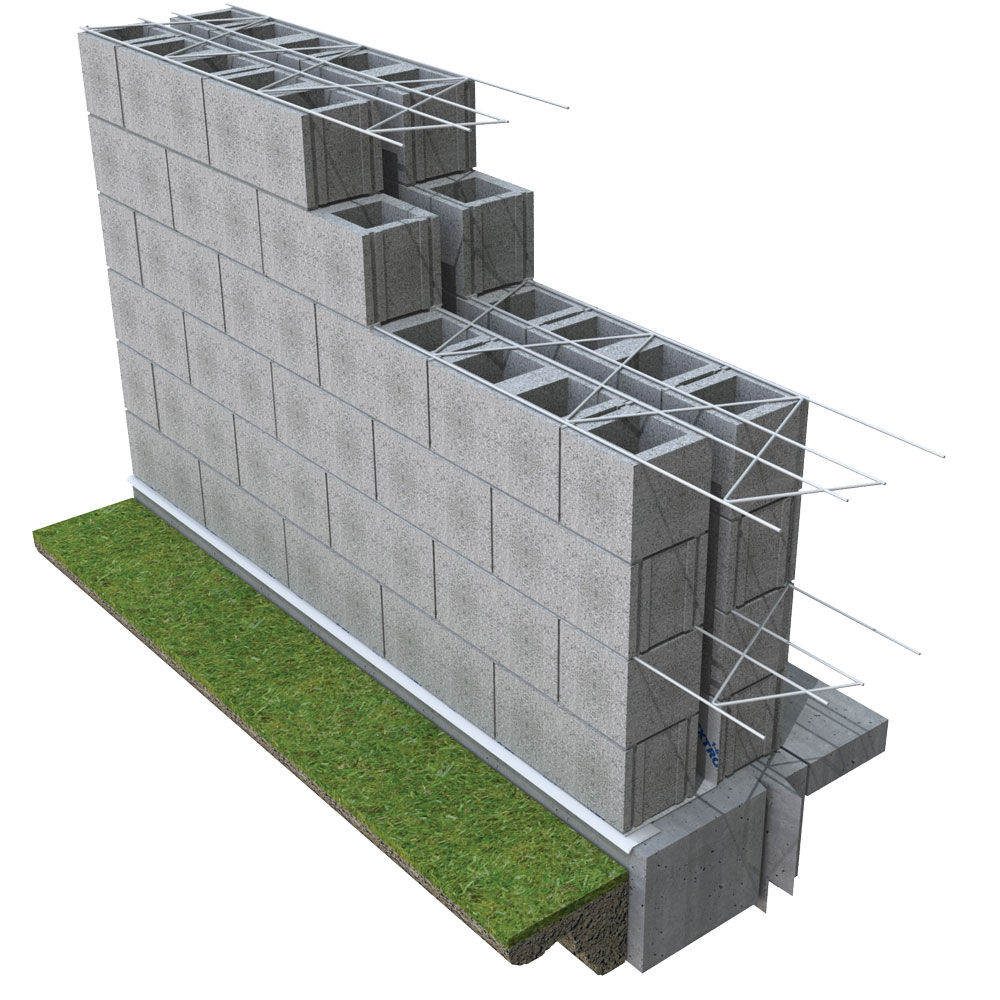

140 Truss Twin-Mesh has 4 Longitudinal (Side) Rods to reinforce block-and-brick or block-and-block composite walls (block-and-block product and application shown in renderings)

  • Hohmann & Barnard's Lox All® Truss-Mesh and Lox All® Ladder-Mesh are continuous lengths of joint reinforcement that are embedded into the horizontal mortar joints of masonry walls
  • Joint reinforcement has long proven to be necessary for superior performance of masonry wall construction
  • Fabricated in conformance with ASCE/ACI 530 building code requirements for masonry structures, and ASTM A 951 (standard specification for masonry joint reinforcement)

Effective Area of Horizontal Joint Reinforcement for Hohmann & Barnard Continuous Systems Chart (PDF)

CMU Wall Type

Composite Wall Multi-Wythe

Wire Size

(S) Standard Weight: 9 Gauge Side Rods x 9 Gauge Cross Rods(EH) Extra Heavy: 3/16"Ø Side Rods x 9 Gauge Cross Rods(SHD) Super Heavy Duty: 3/16"Ø Side Rods x 3/16"Ø Cross Rods

Block Size

4"6"8"10"12"14"16"CUSTOM

Backup Type

CMU

Finishes/Materials

Mill GalvanizedHot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
